Flush portlight 360 × 680 mm Lewmar

The Lewmar flush portlight is designed to provide a modern, streamlined finish that perfectly complements the Flush hatch range. Thanks to its flush-mounted glazing and black outer frame, it blends seamlessly into the hull, creating a continuous, elegant line.

Available with either a quarter-turn handle or clip handle, this portlight lets you choose the opening system that best suits your boat and your preferences.

Its thick acrylic glazing sits almost flush with the frame, enhancing the sleek flush appearance while improving strength and durability. The black-painted outer frame discreetly conceals the fastenings and the edge of the glazing for a particularly refined finish.

Installed in a hull side or coachroof, the Lewmar Flush Portlight provides natural cabin ventilation while creating the impression of a larger opening thanks to its flush design.

Technical specifications of the flush portlight 360 × 680 mm Lewmar:

• Range: Flush
• Type: Opening portlight
• Available configurations:
  • Quarter-turn handle
  • Clip handle
• Glazing: Thick acrylic
• Outer frame: Black
• Flyscreens are not supplied as standard with these portlights

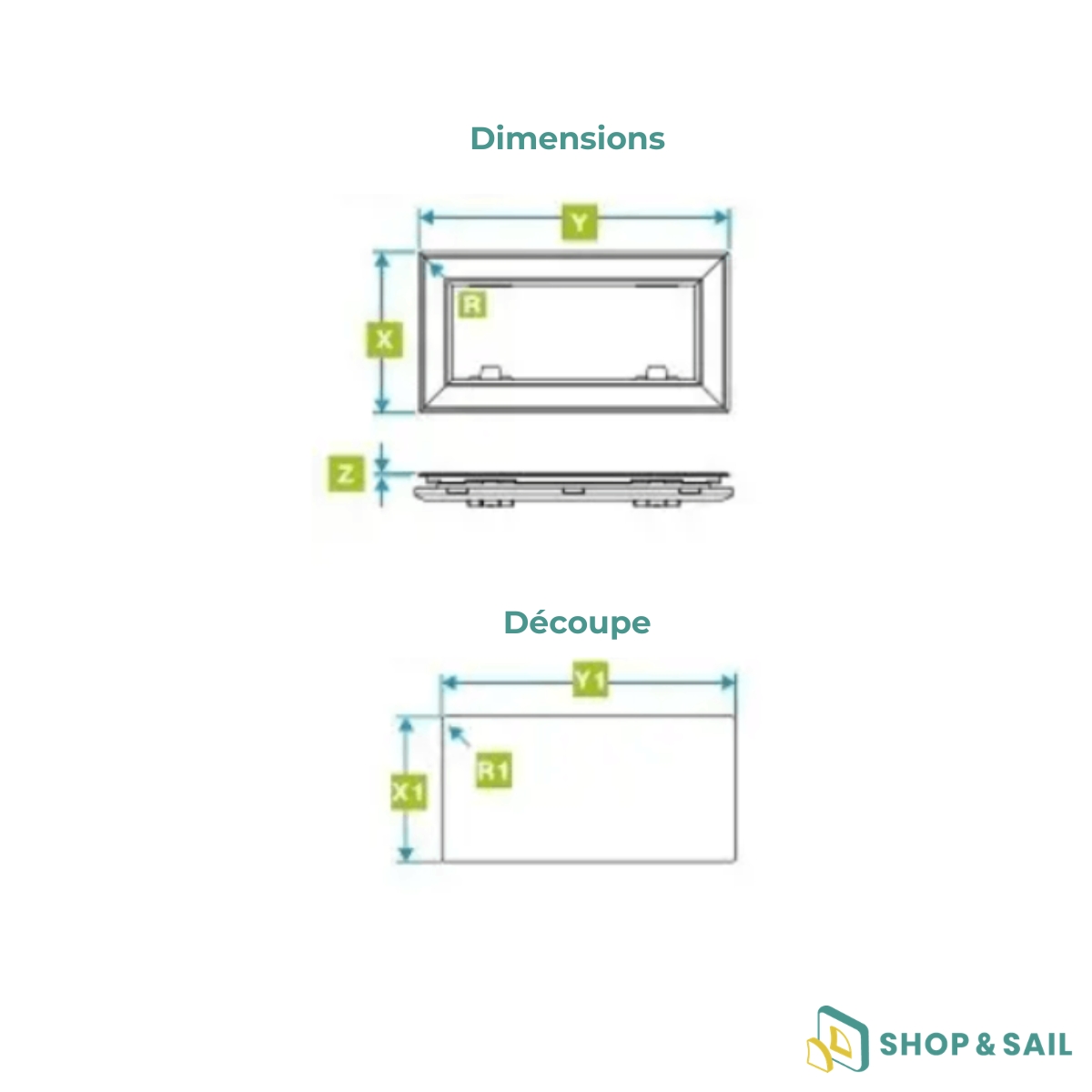

Overall dimensions:

• X: 360 mm
• Y: 680 mm
• R: 5 mm
• Z: 4 mm

Cut-out dimensions:

• X1: 341 mm
• Y1: 661 mm
• R1: 5 mm
