Name: 110° overlay door hinge – Blum
SKU: 44272
Availability: BackOrder

110° overlay door hinge – Blum

Compatible models :

TTC

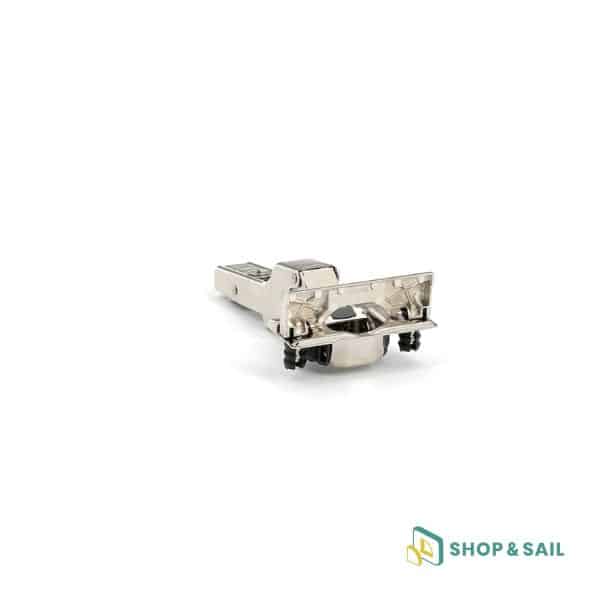

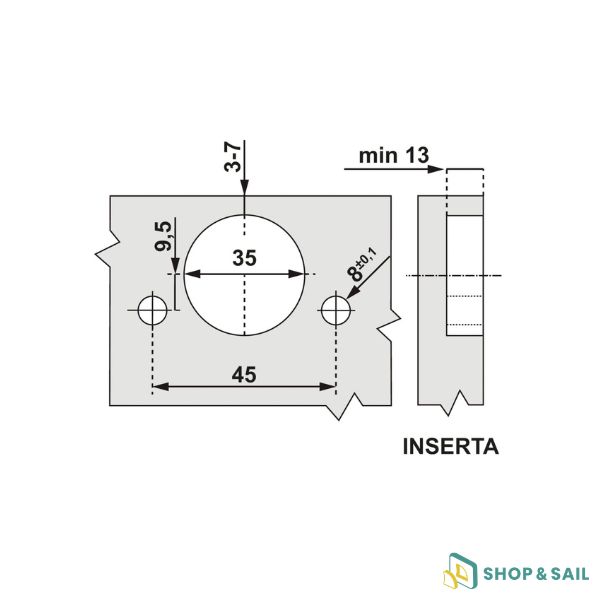

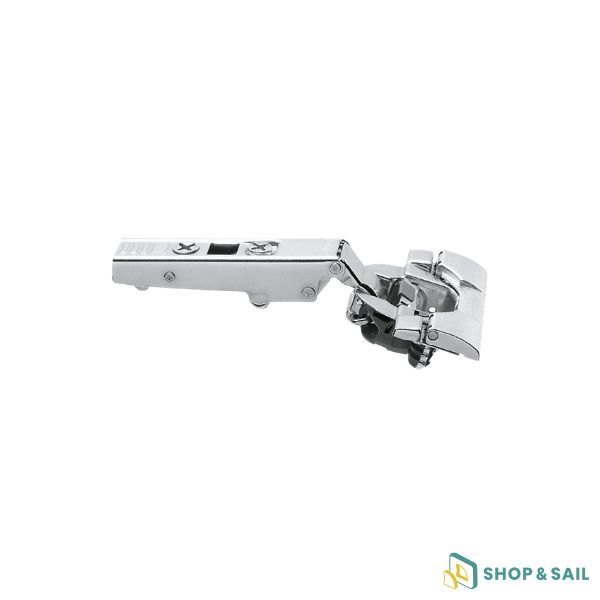

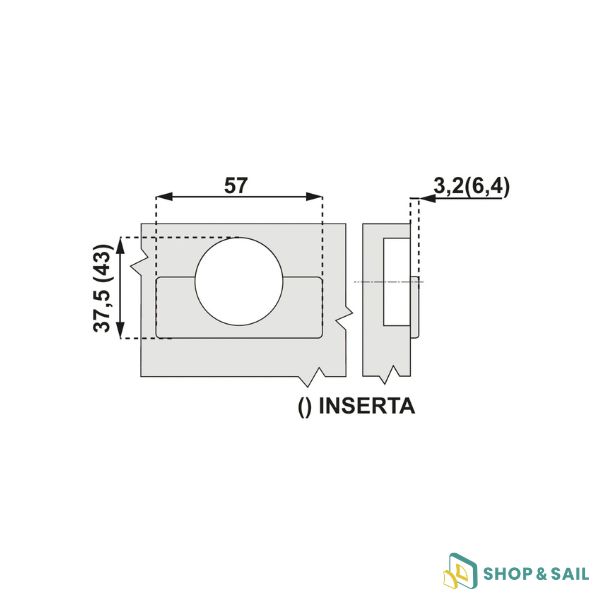

Blum 110° CLIP hinge for overlay doors, with a fixed 11 mm setback. Made of nickel-plated steel, it features the BLUMOTION soft-close system with deactivation option, a spring-assisted closing mechanism and an INSERTA mounting system. The corresponding mounting plate is essential for securing the hinge to your furniture or interior fittings aboard your catamaran or sailboat.

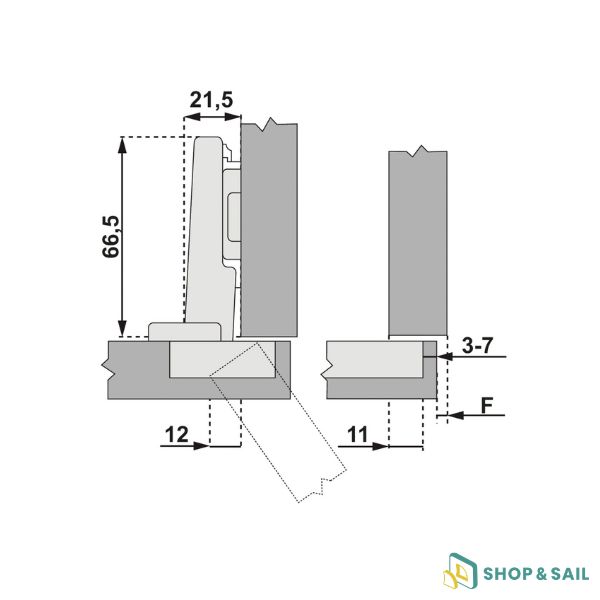

The Blum 110° CLIP hinge for overlay doors is designed for mounting doors with a significant overlay. Its fixed 11 mm setback makes it suitable for the corresponding installation configurations.

Made of nickel-plated steel, it features the BLUMOTION soft-close system to control the closing of the door. The BLUMOTION function can also be deactivated depending on your installation requirements. A spring-assisted closing mechanism completes the system.

The door can be mounted or removed from the cabinet without tools, while the hinge allows 3-dimensional adjustment when used with the corresponding mounting plate.

This hinge is particularly suitable for interior fittings on your boat or catamaran, when replacing or installing an overlay door.

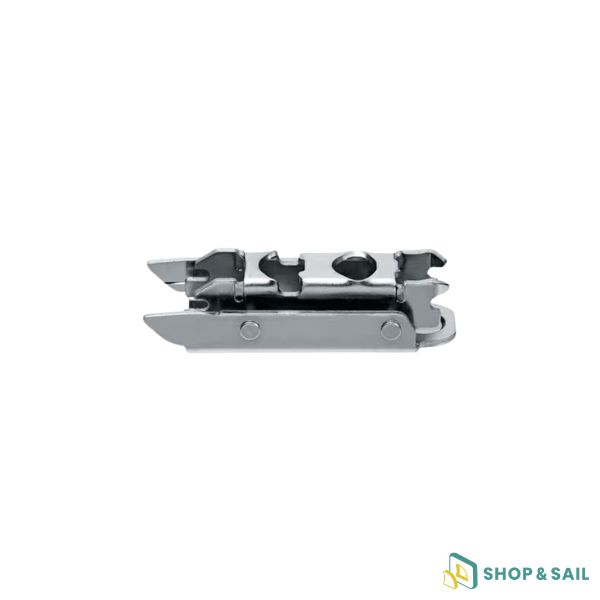

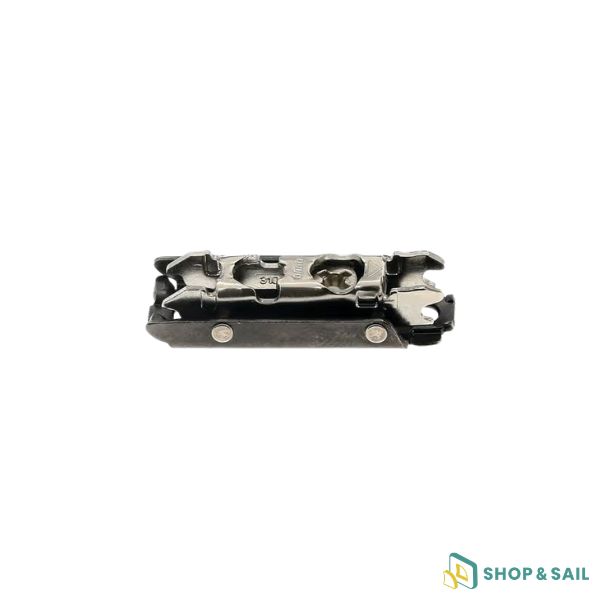

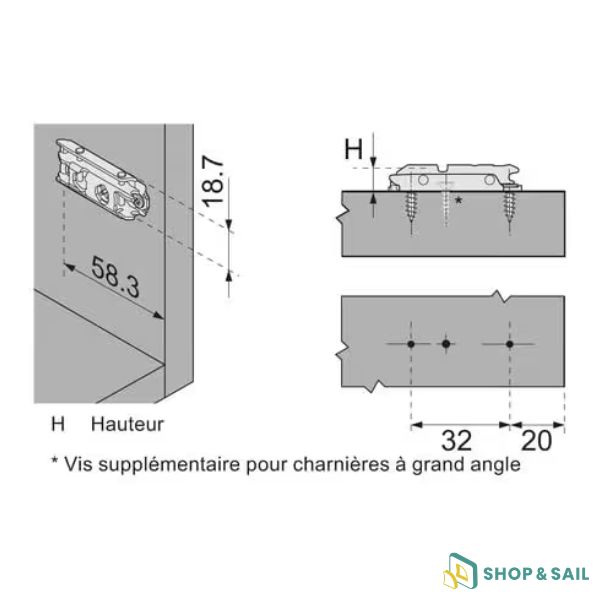

The corresponding mounting plate is required to secure the hinge to the cabinet. It completes the hinge and allows 3-dimensional adjustment. This BLUM straight mounting plate is part of the CLIP mounting plate system and is designed to secure a hinge to the cabinet or interior fitting. Made of nickel-plated steel, it is designed for installation with 3.5 mm chipboard screws. Its eccentric height adjustment allows the mounting plate to be adjusted by ±2 mm, making it easier to align and adjust the door.
