Vimar IDEA SICURY 2P+E 16A 250V Italian Bipasso Socket P17/11
Compatible models :
Price range: 10,49 € through 11,09 € TTC
The Vimar IDEA SICURY 2P+E 16A 250V socket is designed to the Italian Bipasso P17/11 standard and features enhanced child safety protection. With screw terminal connections, it delivers a secure and reliable electrical connection. Available in White, Grey and Red.
The Vimar IDEA SICURY 2P+E 16A 250V socket combines safety, reliability and elegant design for residential, commercial and marine electrical installations.
Built to the Italian Bipasso P17/11 standard, it is equipped with the SICURY safety system, providing enhanced protection against accidental contact for improved user safety.
Its screw terminal connection ensures secure wiring and long-term electrical reliability, while the 1-module format integrates seamlessly into compatible Vimar IDEA frames and switch plates.
Manufactured from halogen-free thermoplastic with a matt finish, this socket is suitable for demanding environments including boats, motorhomes and residential properties.
Available in three colours: White, Grey, Red
Technical Specifications
- Product type: Power socket
- Standard: Italian Bipasso P17/11
- Configuration: 2P+E
- Rated current: 16 A
- Rated voltage: 250 V
- Frequency: 50–60 Hz
- Safety system: SICURY (enhanced protection against accidental contact)
- Connection type: Screw terminals
- Mounting: Flush-mounted
- Protection rating: IP20
- Material: Halogen-free thermoplastic
- Finish: Matt
- Available colours:
- White
- Grey
- Red

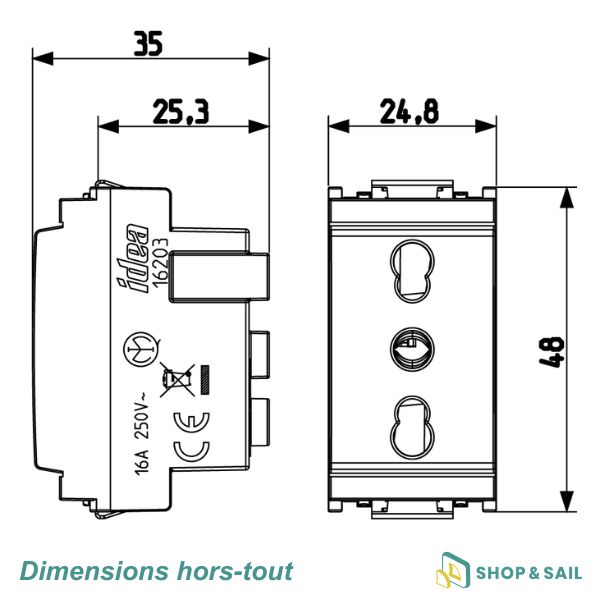

- Dimensions:
- Width: 24.8 mm
- Height: 50.1 mm
- Depth: 35 mm
- Applications: Residential, marine, RV and commercial electrical installations.
