16 A 2P+E SICURY socket German standard grey Vimar

The Vimar SICURY socket is a 2P+E power socket designed for residential electrical installations and interior fittings aboard your sailboat or catamaran.

Designed to the German standard, it has a rated current of 16 A and a rated voltage of 250 V AC. Its mechanism incorporates enhanced protection against accidental contact, making it safer to use on board.

This 2 reduced-module socket is designed for flush mounting and connects via screw terminals. Made from halogen-free thermoplastic with a matt grey finish, it integrates easily into interior electrical fittings.

Technical specifications of the Vimar SICURY socket:

• Brand: Vimar

• Manufacturer reference: 17038

• Series: IDEA

• Type: SICURY power socket

• Standard: German

• Configuration: 2P+E

• Number of sockets: 1

• Number of modules: 2 reduced modules

• Rated current: 16 A

• Rated voltage: 250 V AC

• Frequency: 50–60 Hz

• Connection type: screw terminals

• Mounting: flush-mounted

• Protection against accidental contact: yes

• Protection rating: IP20

• Material: plastic

• Material quality: thermoplastic

• Colour: grey

• Finish: matt

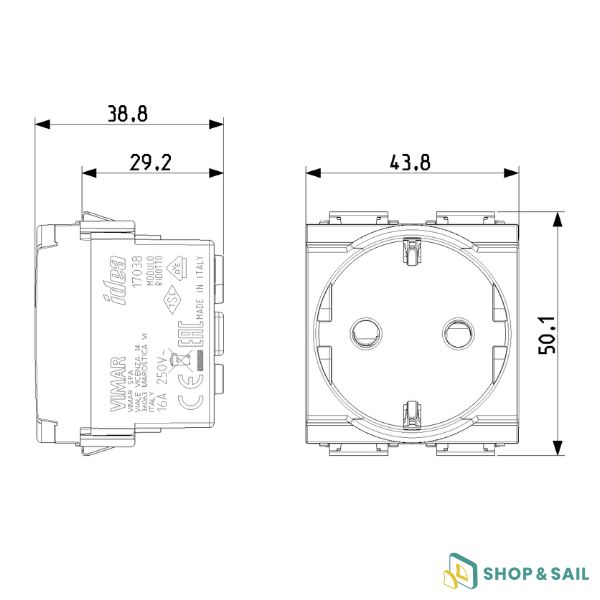

• Width: 43.8 mm

• Height: 50.1 mm

• Depth: 36.5 mm

Important information before ordering:

This socket follows the German standard and uses the 2 reduced-module format from the Vimar IDEA series.
Before ordering, check compatibility with the electrical fittings and flush-mounting box installed on your boat.
