Synchro deck block with or without jammer Lewmar
Compatible models :
Price range: 135,50 € through 193,30 € TTC
The Synchro deck block is designed for guiding and redirecting control lines on deck. Available with or without a cam jammer, it features strong aluminium cheeks, a moulded base and double fastening with an insert. Both versions can be stacked.
The Synchro deck blocks provide a robust and compact solution for redirecting control lines on deck. Their design combines aluminium cheeks, a moulded base and fastening insulators to protect the sealing system and prevent the seal from interfering with the sheave.
The wide, reinforced base and double fastening with insert provide excellent stability on deck. The moulded base also helps prevent the watertight seal from entering the sheave bearing. These fittings are found on Fountaine Pajot and Nautitech catamarans.
Available in two versions : standard without jammer or with cam jammer. Both versions can be stacked. The cam version features a two-stage locking movement that keeps the lever alongside the block and centres the line in the sheave. It is designed for low loads that can be held by hand.
M10 fastening screws not included.
Types of manoeuvres :
- Jib furler
- Furling system
- Mainsail
- Sheave
Technical specifications of the Synchro deck block with or without jammer
- Versions : Standard without jammer / with cam jammer
- Cheek material : Aluminium
- Fastening : Double fastening with insert
- Recommended screws : M10 not included
- Working load : 2,000 kg
- Weight without jammer : 430 g
- Weight with jammer : 480 g

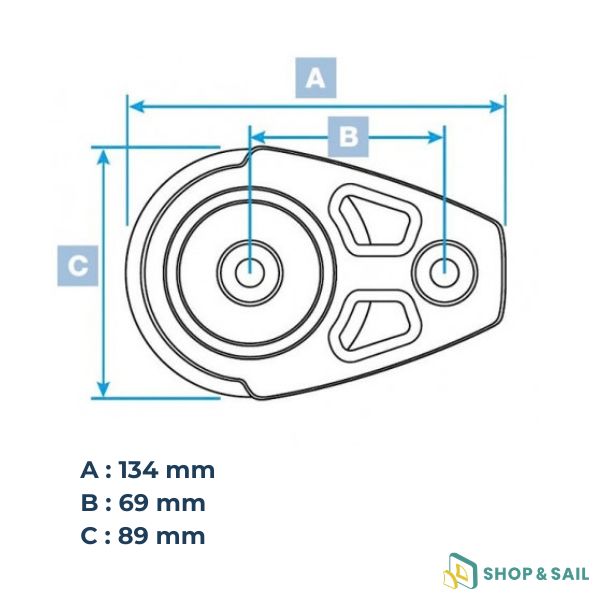

- Dimension A : 134 mm
- Dimension B : 69 mm
- Dimension C : 89 mm
- Mounting : Standard and cam versions can be stacked
- Fountaine Pajot compatible models : Astrea 42 | Elba 45 | Tanna 47 | Aura 51
| Weight | 0,430 kg |
|---|---|
| Dimensions | 13,4 × 8,9 cm |
| Model |
