Wireless Load Pin Cyclops Marine Thira 80
4615,38 €

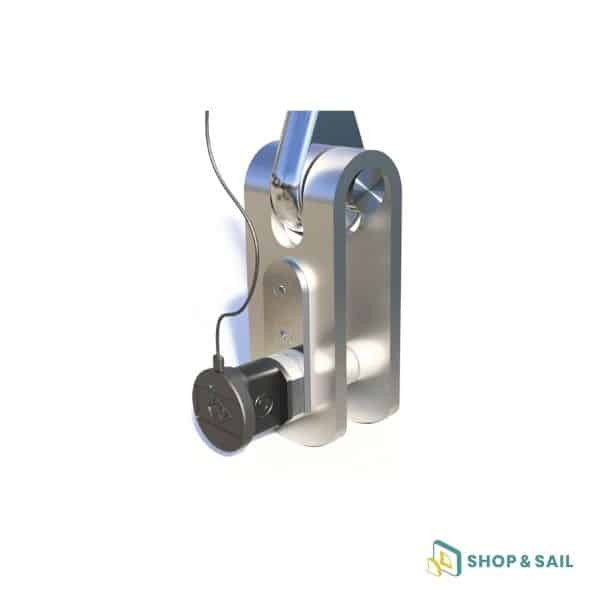

The Cyclops Marine Wireless Load Pin is a wireless load sensor designed to directly replace the pin in eye-to-eye systems. Custom-built for the Thira 80 catamaran, it transmits real-time load data via Bluetooth to your displays or the Cyclops app.
On backorder
Compatible models :

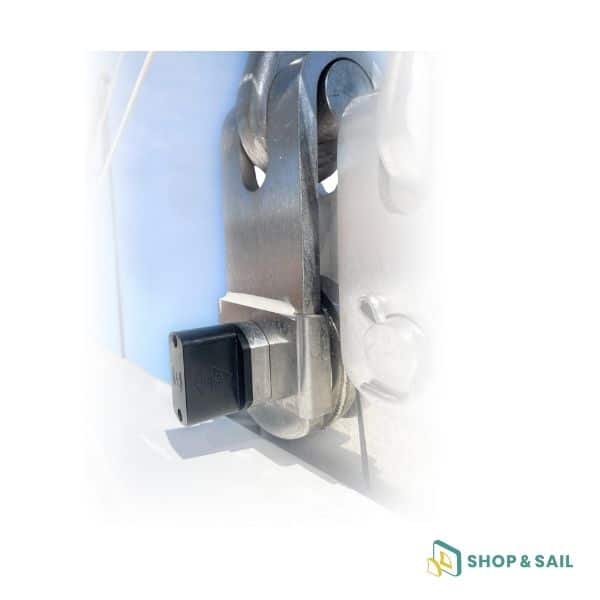

Built for high-load rigging systems, the Cyclops Marine Wireless Load Pin replaces a standard pin without any structural modification. It fits seamlessly into eye-to-eye setups, even on large multihulls like the Thira 80.
Made from 17-4 PH stainless steel, the sensor combines strength and durability to withstand the most demanding marine environments. It is rated IP68 for prolonged immersion and performs reliably across a wide temperature range. Its compact design allows for easy integration into your rigging without altering the existing setup.
Data is transmitted via Bluetooth to the Cyclops app, or to your onboard electronics (B&G, NKE, Garmin…) using an NMEA 2000 gateway. In real-time, this feedback helps you fine-tune tension, improve safety, and boost sailing performance.
Technical specifications – Cyclops Marine Wireless Load Pin (Thira 80)
-
Type: Wireless load-sensing pin
-
Use case: Replaces a pin in eye-to-eye fittings
-
Material: 17‑4 PH stainless steel (other alloys available on request)
-
Waterproof rating: IP68 – prolonged immersion
-
Operating temperature: –10 °C to +40 °C (with thermal compensation)
-
Accuracy: ±1% of maximum load
-
Calibration: Factory-calibrated, no onboard adjustment required
-
Data transmission: Bluetooth to Cyclops app or NMEA 2000 gateway
-
Installation: Quick and non-invasive
-
Recommended for: Thira 80 catamaran
| Weight | 0,8 kg |
|---|
