Wireless Load Pin Cyclops Marine
4036,48 €

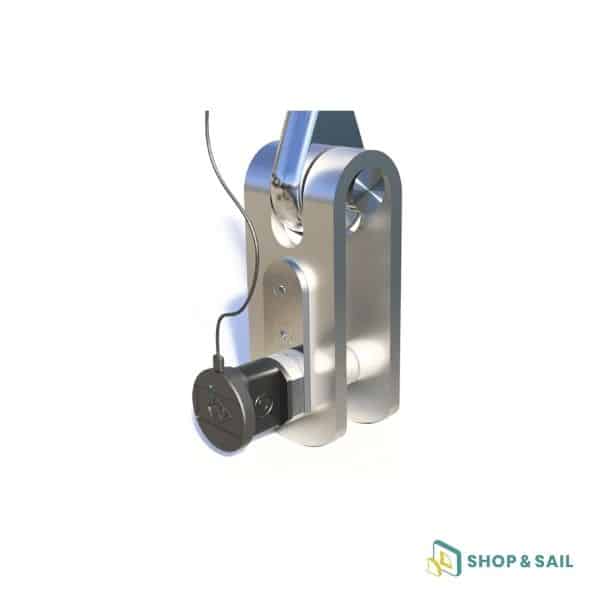

The Cyclops Marine Wireless Load Pin is a wireless load sensor designed to replace fixed load-bearing pins in high-load rigging. It transmits real-time load data via Bluetooth and is custom-built specifically for Fountaine Pajot Alegria 67 catamarans.
On backorder
Compatible models :
The Cyclops Marine Wireless Load Pin is a wireless sensor built for demanding marine environments. It replaces standard pins in eye-to-eye connections without requiring structural modifications.
Made from 17-4 PH stainless steel, it offers both strength and durability. It withstands prolonged immersion (IP68) and temperature variations. Its compact design allows for easy integration into the rigging—even on large catamarans like the Alegria 67.
The Load Pin transmits real-time data via Bluetooth. You can view the data through the Cyclops app, or display it on your onboard instruments via an NMEA 2000 gateway. This seamless connectivity helps monitor loads on vang systems, poles, or halyards with precision.
While sailing, it allows for quick adjustments, helping you optimize performance, safety, and control onboard.
Technical specifications – Wireless Load Pin Cyclops Marine (Alegria 67)
-
Type: Wireless load-sensing pin
-
Application: Replacement of rigid eye-to-eye fixings
-
Material: 17-4 PH stainless steel (other alloys available on request)
-
Waterproofing: IP68 – prolonged immersion
-
Temperature range: –10 °C to +40 °C (with thermal compensation)
-
Accuracy: ±1% of full scale
-
Calibration: Factory-calibrated, no onboard adjustment needed
-
Data transmission: Bluetooth to Cyclops app or NMEA 2000 gateway
-
Installation: Fast, easy, no structural changes
-
Recommended for: Fountaine Pajot Alegria 67
| Weight | 0,8 kg |
|---|
