Smarttune 3/4″ Cyclops Marine
2831,40 €

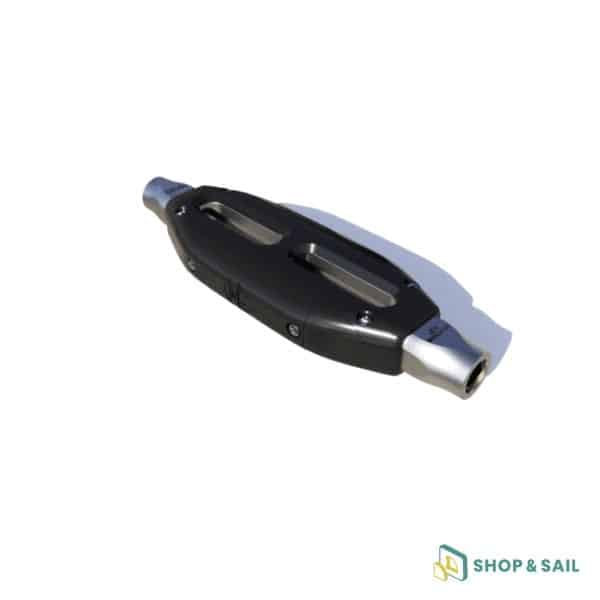

The Smarttune 3/4″ sensor by Cyclops Marine continuously monitors the tension on your shrouds. It transmits real-time data to your smartphone or onboard instruments via the Cyclops gateway, ensuring precise tuning and safer sailing.
On backorder
Compatible models :

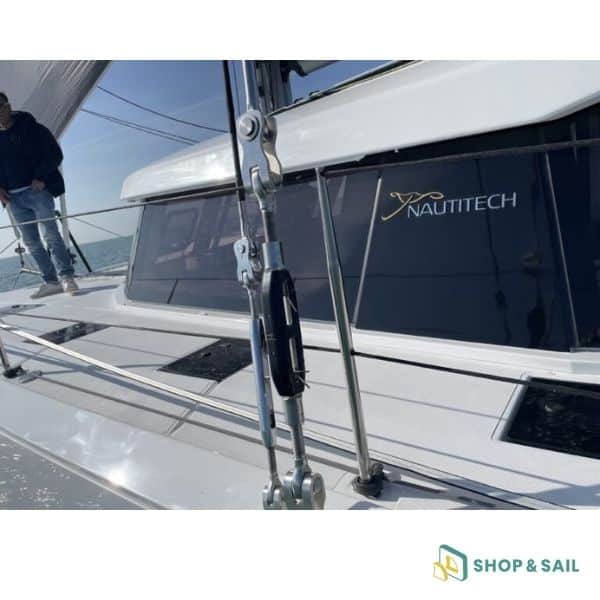

The Smarttune 3/4″ is a wireless load sensor designed for sailboats with heavy-duty standing rigging. It replaces your turnbuckle and provides accurate, continuous measurements of the loads on your shrouds.
Thanks to Bluetooth transmission, the data is accessible via the Cyclops app on your smartphone or integrated directly into your onboard displays through the Cyclops gateway. This constant monitoring allows you to fine-tune your rig according to sailing conditions, enhancing both performance and safety.
Built to last, the Smarttune 3/4″ runs for up to 16 months on two AAA batteries. It is calibrated for a working load of 6,000 kg and can withstand a breaking load of up to 15,000 kg—ideal for high-performance or large cruising yachts.
Technical Specifications – Smarttune 3/4″ Cyclops Marine:
-
Type: Wireless load sensor for standing rigging
-
Data transmission: Bluetooth to smartphone (Cyclops app) or via gateway to onboard instruments
-
Calibrated load: 6,000 kg
-
Breaking load: 15,000 kg
-
Battery life: Up to 16 months
-
Power supply: 2 AAA batteries
-
Dimensions: 11,2 x 5,5 x 1,8 cm
-
Installation: Direct replacement of the turnbuckle
-
Application: For large-section shrouds
| Weight | 1,5 kg |
|---|---|
| Dimensions | 11,2 × 5,5 × 1,8 cm |
