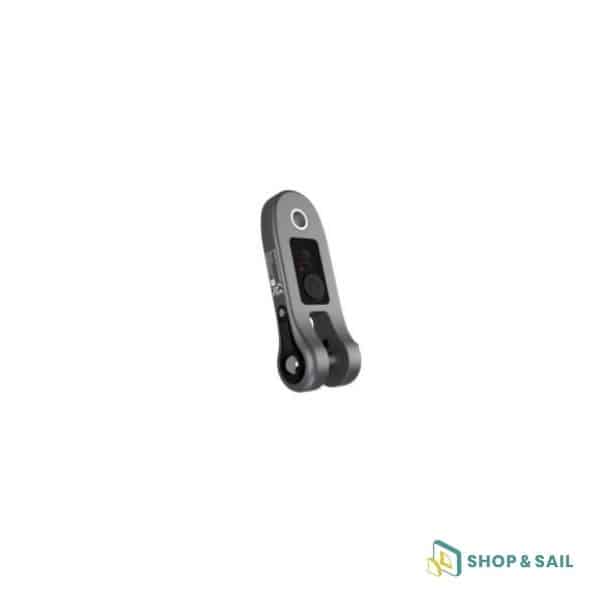

smarttoggle 4.5t Cyclops Marine
2140,32 €
Compact wireless sensor, the Smarttoggle 4.5 t accurately measures the tension on your forestay cable. Ideal for real-time monitoring of your furling system, directly from your smartphone or onboard displays via the Cyclops Marine gateway.
On backorder
Compatible models :
The smarttoggle 4.5t by Cyclops Marine is a wireless load sensor designed to continuously measure tension on the forestay cable or textile stay. It transmits real-time data via Bluetooth to the Cyclops app on your smartphone, or directly to onboard displays using the Cyclops gateway.
This instant reading allows you to fine-tune your forestay tension with high precision, ensuring smooth and consistent furling performance in all sailing conditions.
Thanks to its compact, waterproof, and rugged design, the SmartToggle 4.5t withstands the harshest marine environments. It’s perfectly suited for performance cruisers and light racing yachts. The device is rated for a working load of 4,500 kg and offers over 2,000 hours of autonomy with a rechargeable induction-powered battery.
A smart and discreet tool that integrates naturally into your rigging system, helping to optimize your furling setup while extending the life of your textile cable. An ideal addition to your boat’s outdoor equipment.
Technical Specifications – smarttoggle 4.5t Cyclops Marine
-
Type: Wireless load sensor for non-structural furling systems
-

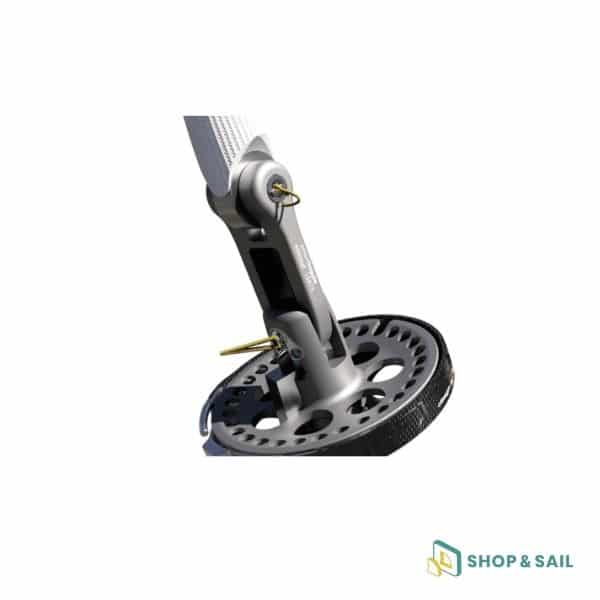

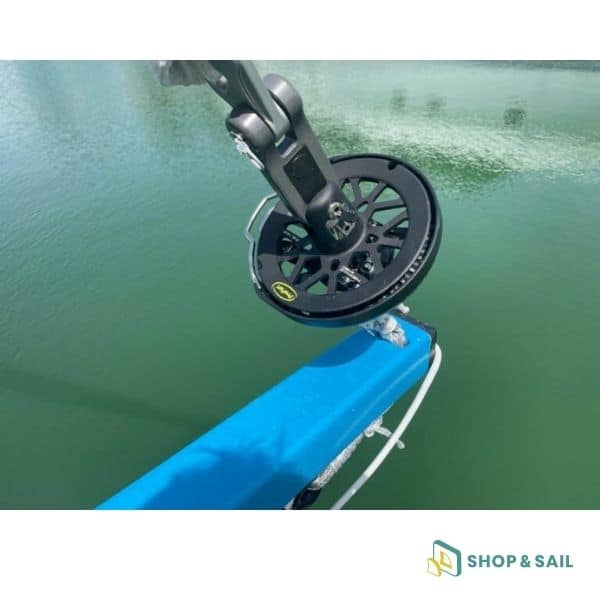

Installation: Replaces the toggle or swivel of the forestay cable
-
Data Transmission: Bluetooth to smartphone (Cyclops app) or via gateway to onboard displays
-
Max Working Load: 4,500 kg
-
Accuracy: ±1% full scale
-
Battery Life: Approx. 2,000 hours
-
Charging: Wireless induction
-
Waterproofing: Rated to IP67/IP68+ standards
-
Compatibility: All textile or hybrid cable furling systems
-
Dimensions: Compact design, optimized for direct installation with no modifications needed
| Weight | 0,230 kg |
|---|---|
| Dimensions | 14 × 5 × 3,5 cm |
