Smartlink 20T Cyclops Marine
4475,64 €
Ultra high-capacity wireless load sensor, the Smartlink² 20T by Cyclops Marine measures in real time the tension applied to your sheets, halyards, or heavy load lines — up to 20 tonnes. It’s the ideal solution for large yachts and demanding sailors looking for precise, instant control.
On backorder
Compatible models :

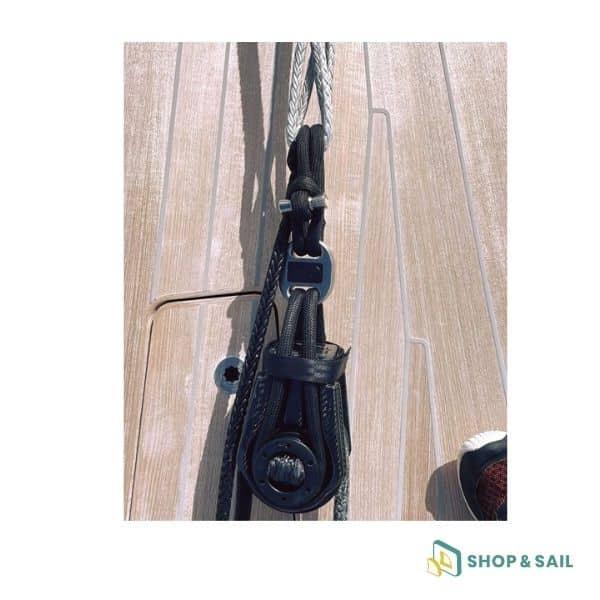

The Smartlink² 20T is a wireless load sensor engineered by Cyclops Marine to accurately monitor dynamic tension on your most heavily loaded lines: sheets, halyards, textile backstays, or other high-load rigging. It clips directly onto the line without altering your current setup.
Live data is transmitted via Bluetooth to the Cyclops app on your smartphone, or to your onboard displays through the Cyclops gateway. This real-time feedback enables fast, precise adjustments based on sailing conditions — whether you’re cruising fast or racing offshore.
Designed for high-performance yachts and intensive programs, the Smartlink² 20T is both rugged and waterproof (IP67/IP68+). It delivers up to 2,000 hours of autonomy and recharges wirelessly in just one hour. Its compact design ensures minimal impact on rig balance, despite its impressive load capacity.
Technical Specifications – Smartlink² 20T Cyclops Marine
-
Type: Wireless load sensor for rigging (sheets, halyards, backstays, etc.)
-
Operating range: For dynamic loads up to 20,000 kg
-
Data transmission: Bluetooth to Cyclops app or via gateway to onboard instruments
-
Max working load: 20,000 kg
-
Accuracy: ±1% of full scale
-
Battery life: Up to 2,000 hours
-

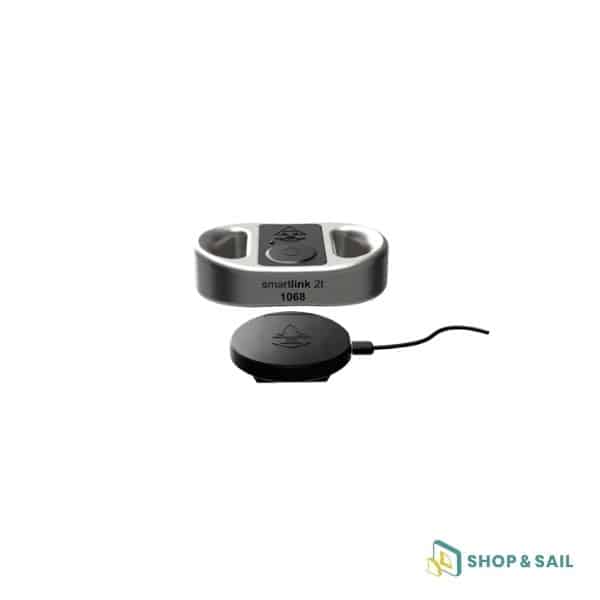

Recharge: Wireless induction (full charge in 1 hour)
-
Waterproof rating: IP67 / IP68+
-
Compatibility: Textile ropes and dynamic load lines
-
Installation: Quick-attach carabiner system, no disassembly required
-
Weight: Lightweight for its class, designed to reduce inertia on the rig
| Weight | 0,800 kg |
|---|---|
| Dimensions | 10,7 × 8,8 × 3,9 cm |
