Smartlink 2 T ee Cyclops Marine

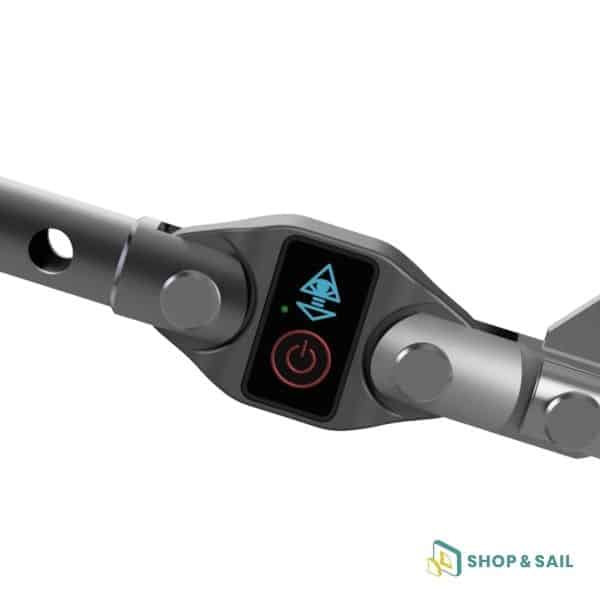

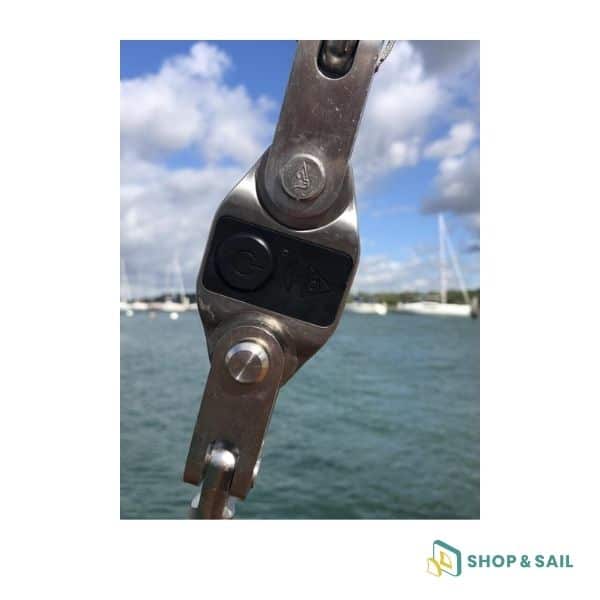

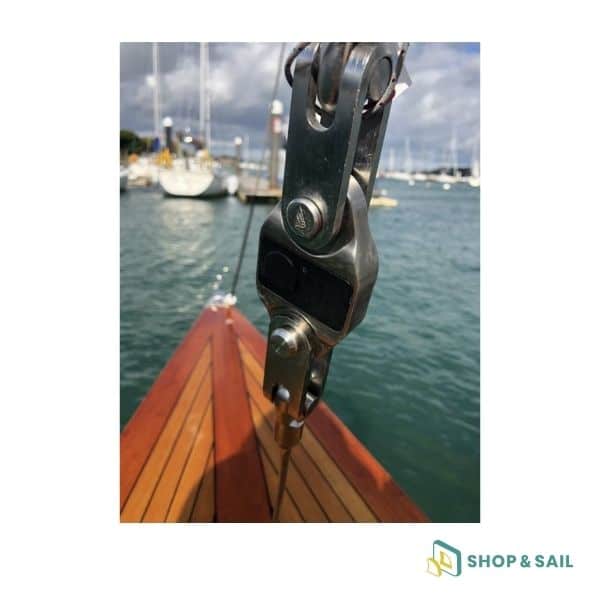

The Smartlink 2 T ee is a wireless load sensor specifically developed for sailing applications with rigid attachment points – such as eye-to-eye or pin-to-pin connections. It integrates easily into fixed systems like vang, backstay, sheet or pole connections, without altering the rig architecture.

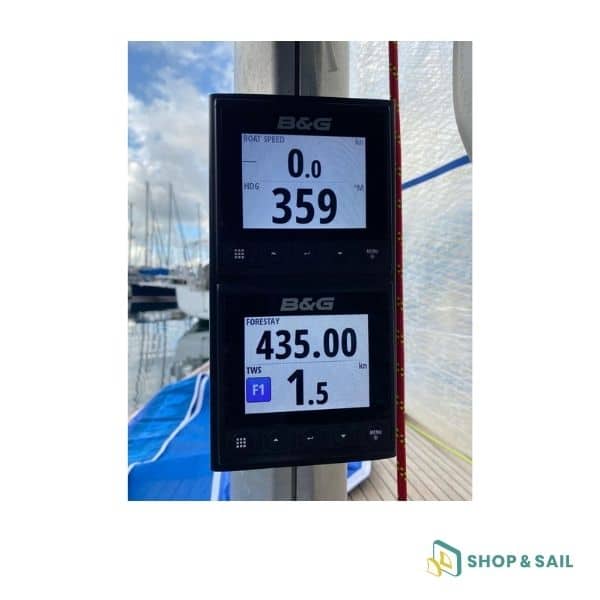

With its titanium body, it combines strength and lightness while providing excellent resistance to marine corrosion. Able to measure up to 2,000 kg of load with ±1% accuracy, it delivers real-time tension readings, either via the Cyclops app or directly to your onboard instruments through the dedicated gateway.

Fully autonomous, the Smartlink 2 T ee recharges wirelessly in just one hour and provides up to 8,000 hours of battery life in power-saving mode. Rated IP68, it’s designed for intensive use in all marine conditions.

Whether you’re racing on a high-performance dinghy or a demanding one-design such as a Dragon or Etchells, this sensor provides clear, reliable insight into rig loads, allowing you to optimize tuning, increase repeatability, and boost overall performance.

Technical specifications – Smartlink 2 T ee

• Type: Wireless load sensor for rigid (eye-to-eye) fittings

• Max working load: 2,000 kg

• Accuracy: ±1% of max load

• Dimensions: 97 mm × 52 mm × 17 mm

• Weight: Approx. 160 g

• Transmission: Bluetooth to Cyclops app or via gateway

• Battery life: Approx. 2,000 h active usage (up to 8,000 h in low-power mode)

• Charging: Wireless induction (1 h full charge)

• Waterproof rating: IP68 – suitable for extended immersion

• Compatibility: Eye-to-eye fittings (8–12 mm pin diameter)

• Recommended use: Racing dinghies, one-design classes, direct-link load points

• Associated category: Electronics
