Smartlink² Nano Cyclops Marine
1296,36 €
Ultra-compact and precise, the Smartlink² Nano is designed to measure loads on the smallest dynamic rigging. Perfect for dinghies, kites, or foilers, it transmits real-time data via Bluetooth for effortless and accurate tuning.
On backorder
Compatible models :

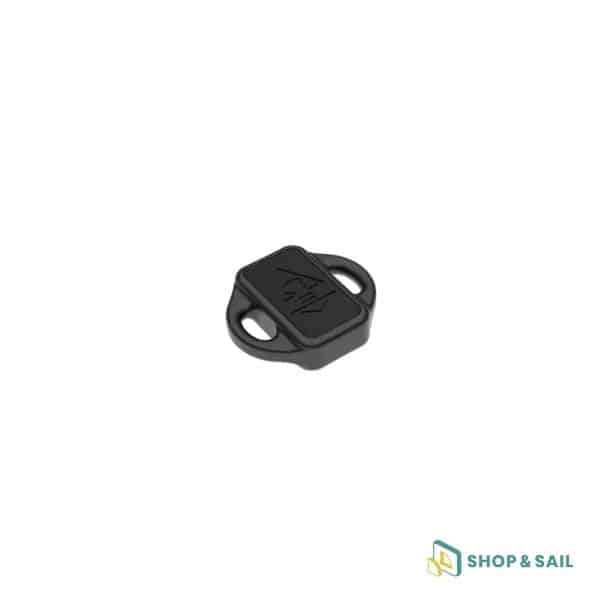

The Smartlink² Nano is the smallest and lightest load sensor in the Cyclops Marine range. Despite its minimal weight, it can withstand working loads of up to 600 kg. Specially developed for refined and technical sailing applications, it reliably measures tension on textile lines.
Ideal for fast and sensitive craft—such as foilers, kitesurf boards, windsurfers, or dinghies—this sensor attaches easily to the line without disrupting it. Thanks to its Bluetooth connectivity, real-time load data is sent directly to the Cyclops app or to your onboard instruments via the dedicated gateway.
With simple wireless charging, long-lasting autonomy, and robust resistance to marine environments, the Smartlink² Nano delivers accurate, lightweight load monitoring to help you fine-tune your performance with confidence.
Technical Specifications – Smartlink² Nano
-
Type: Wireless load sensor for light textile lines
-
Maximum working load: 600 kg
-
Data transmission: Bluetooth to Cyclops app or gateway
-

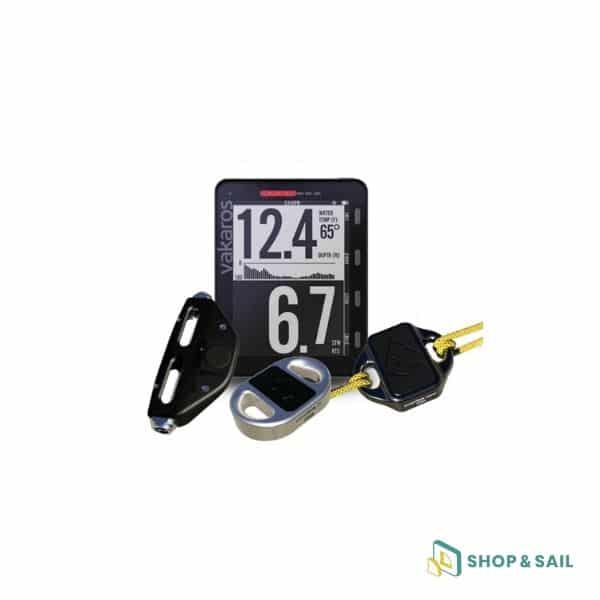

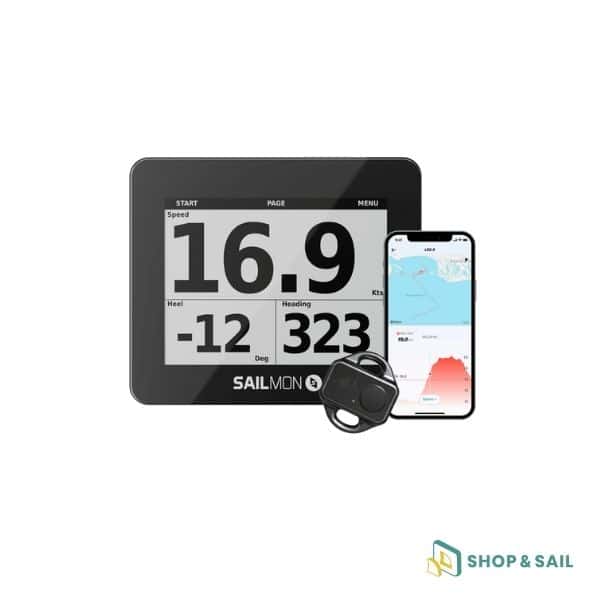

Instrument compatibility: B&G, NKE, Sailmon, Garmin (via Cyclops Marine gateway)
-
Battery life: Up to 2,000 hours
-
Charging: Wireless induction (1 hour for a full charge)
-
Waterproof rating: IP67 / IP68+
-

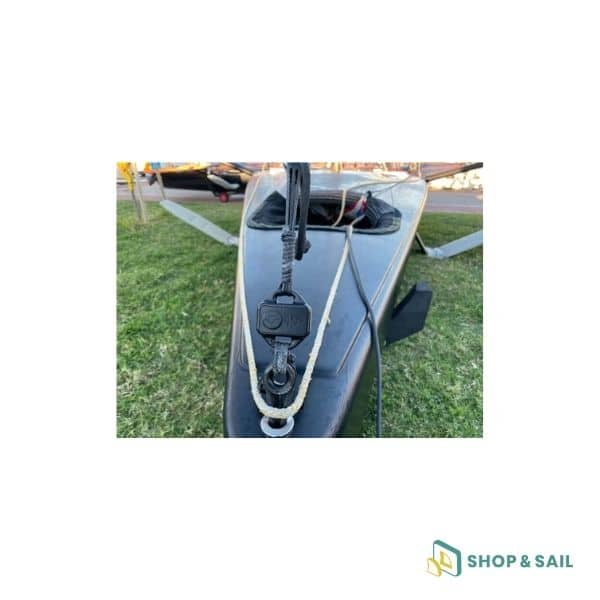

Installation: Simple attachment to textile line
-
Recommended use: Dinghies, foilers, windsurf boards, kitesurf boards
-
Associated category: Electronics
| Weight | 0,072 kg |
|---|---|
| Dimensions | 6,4 × 5,5 × 1,7 cm |
