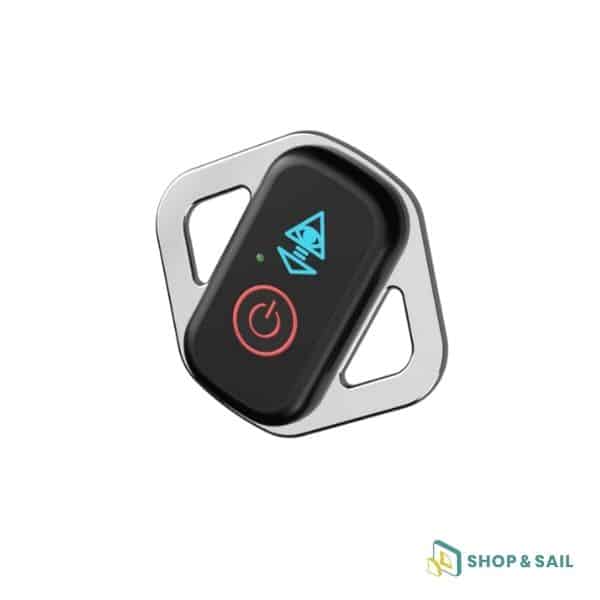

Smartlink² Atto – Cyclops Marine

The Smartlink² Atto is the smallest load sensor in the Cyclops Marine range, purpose-built for high-performance sailing on smaller craft. It provides real-time load readings on textile lines without altering your existing setup.

Thanks to its ultra-lightweight housing (only 75 g), this discreet yet powerful sensor is ideal for precise tuning. With a working load capacity of up to 250 kg, it’s perfect for dinghies, sportsboats, windsurfing, or kiteboarding.

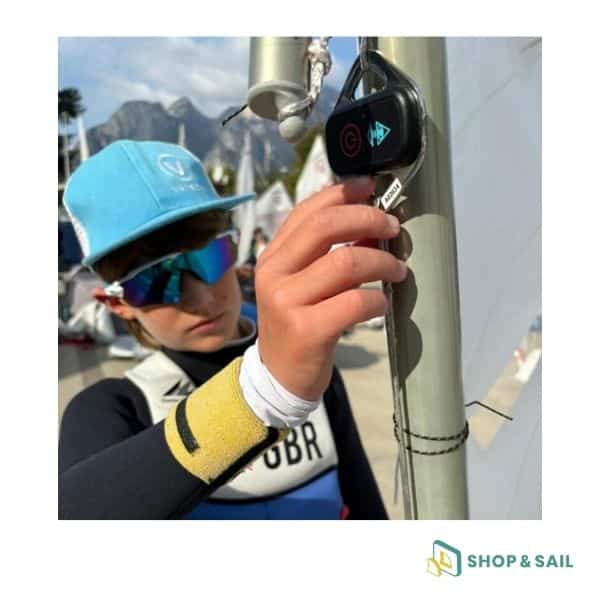

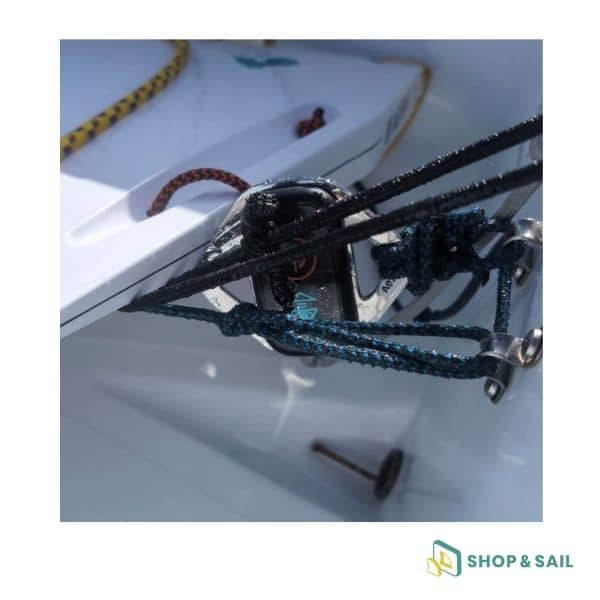

Installation is simple: it attaches directly to a sheet, halyard, or any rope-based load point using a textile strop, pin, or shackle. Its Bluetooth transmission ensures seamless connection to the Cyclops app or, via the gateway, to compatible NMEA displays.

With up to 1,800 hours of battery life and wireless induction charging (fully recharged in just one hour), the Smartlink² Atto is a robust, compact solution for fine-tuning your trim and tracking your performance on the water.

Technical specifications – Smartlink² Atto

• Type: Wireless load sensor for lightweight textile lines

• Working load: 250 kg

• Accuracy: ±1% of full scale

• Dimensions: 68 × 79 × 15 mm

• Weight: 75 g

• Transmission: Bluetooth to Cyclops app or gateway

• Attachment: Textile strop (up to 12 mm), pin, or shackle

• Battery life: Up to 1,800 hours

• Charging: Wireless induction (1-hour full charge)

• Waterproof rating: IP68+

• Compatibility: Cyclops app, Cyclops gateway, NMEA 2000 displays

• Use case: Sheets, halyards, or textile load lines on light sailing craft

• Associated category: Electronics
