Smartlink² 10T Cyclops Marine

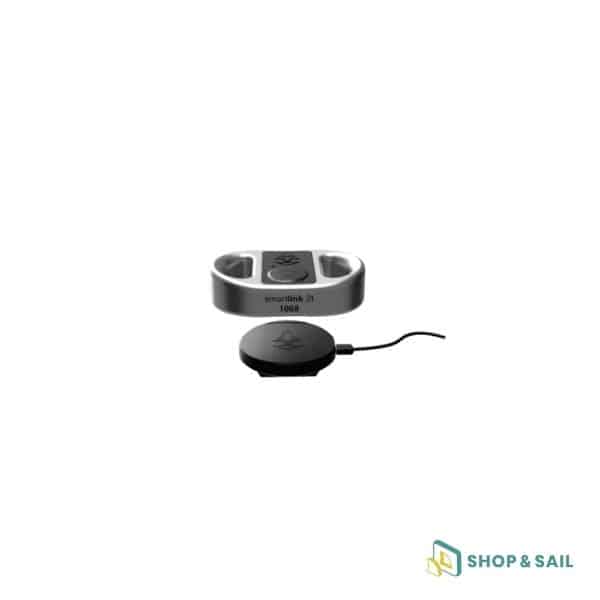

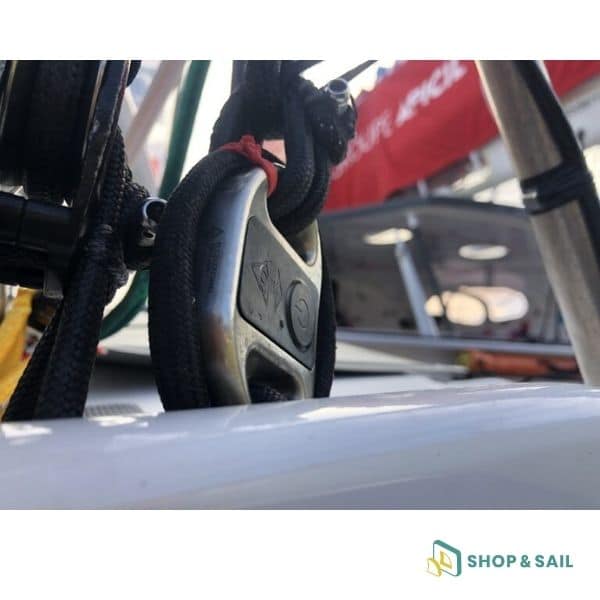

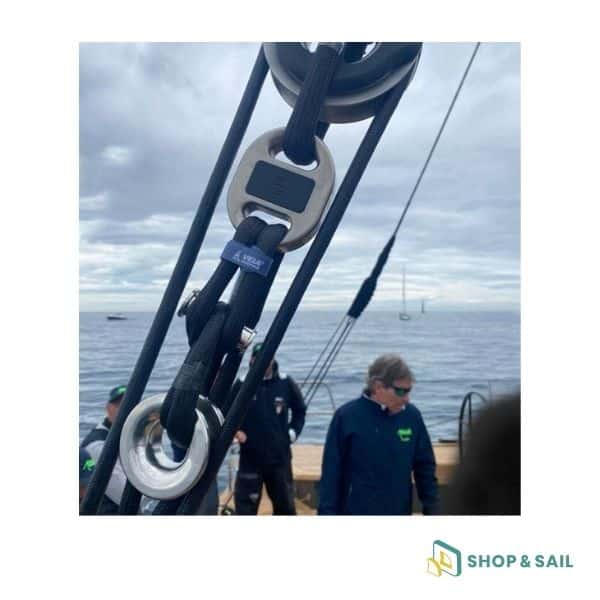

The Smartlink² 10T is a wireless load sensor designed by Cyclops Marine to reliably and accurately monitor dynamic tensions on your most heavily loaded lines: textile backstays, halyards, sheets, runners, etc. Built for large yachts or racing boats, it installs easily without modifying your setup, thanks to its quick attachment to the line being monitored.

Data is transmitted in real time via Bluetooth to your smartphone (through the Cyclops app), or directly to your onboard displays via the Cyclops gateway. This instant reading enables precise adjustments according to sailing conditions, whether cruising fast or offshore racing.

Designed to withstand the harshest environments, the Smartlink² 10T is waterproof (IP67/IP68+), wirelessly rechargeable, and offers about 2,000 hours of battery life. Its size remains optimized to avoid impacting the balance of your rigging, despite its high load capacity.

This sensor naturally fits into the hardware category and becomes a key technical asset for crews seeking performance, repeatability, and control.

Technical specifications – Smartlink² 10T Cyclops Marine

• Type: Wireless load sensor for ropes (sheets, halyards, runners, etc.)

• Operating range: For dynamic loads up to 10,000 kg

• Transmission: Bluetooth to Cyclops app or via gateway to onboard displays

• Maximum working load: 10,000 kg

• Accuracy: ±1% full scale

• Battery life: Up to 2,000 hours

• Charging: Wireless induction (full charge in 1 hour)

• Water resistance: IP67 / IP68+

• Compatibility: Textile ropes and dynamic load lines

• Installation: Quick carabiner attachment, no disassembly required

• Weight: Lightweight for its capacity, designed to minimize rigging inertia
