Package for Fountaine Pajot Thira 80

Package for Fountaine Pajot Thira 80

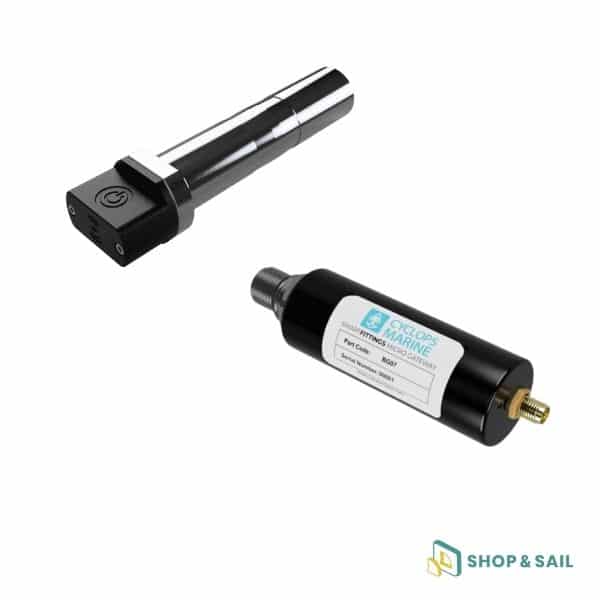

x2 Custom Wireless Load Pins – Thira 80
These wireless load sensors directly replace the pins in eye-to-eye fittings at critical rigging points. Specially designed for the structural and mechanical requirements of the Fountaine Pajot Thira 80, they continuously measure the loads applied and transmit the data via Bluetooth to the Cyclops app or directly to your onboard navigation displays.

Manufactured from 17-4 PH stainless steel, they offer exceptional resistance to corrosion and prolonged immersion (IP68). Their custom format allows for seamless integration without any rigging modification, perfectly suited for large offshore multihulls like the Thira 80.

x1 Cyclops Marine Micro Gateway
More compact than the standard gateway, the micro gateway connects up to 30 Cyclops sensors (Wireless Load Pin, Smarttune, Smartlink…) to your NMEA 2000 network. Once installed, it transmits real-time load data to your compatible navigation displays: B&G, Garmin, Sailmon, NKE, or Yacht Devices.

Its compact format removes the need for constant smartphone use and enhances onboard data readability.

Technical Specifications – Package for Fountaine Pajot Thira 80

Cyclops Marine Micro Gateway

• Connection: NMEA 2000 network

• Supported sensors: up to 30

• Power supply: via NMEA bus

• Installation: Plug & play

• Display compatibility: B&G, Garmin, Sailmon, NKE, Yacht Devices

• Function: Real-time load data display on navigation screens

Custom Wireless Load Pins (x2)

• Type: Wireless load sensor (pin replacement)

• Application: Eye-to-eye fittings

• Material: 17-4 PH stainless steel

• Waterproofing: IP68 – prolonged immersion

• Operating temperature: –10 °C to +40 °C

• Accuracy: ±1% of maximum load

• Calibration: Factory-calibrated, no onboard adjustment needed

• Transmission: Bluetooth to Cyclops app or micro gateway

• Installation: Direct and simple, no modification

• Recommended use: Critical rigging points on Fountaine Pajot Thira 80
