Package for Fountaine Pajot Alegria 67
8436,55 €
Monitor the tension of your shrouds in real time with the Cyclops Marine Pack for the Fountaine Pajot Alegria 67. It includes two Wireless Load Pins, which directly replace standard clevis pins, and a micro gateway to display data on your onboard instruments.
A reliable and precise solution to optimize your rig tuning according to sailing conditions.
On backorder
Compatible models :
Package for Fountaine Pajot Alegria 67:

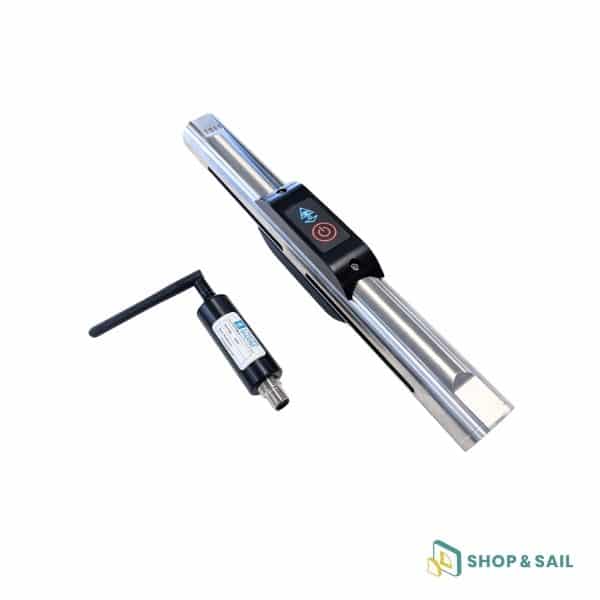

x2 Wireless Load Pins
The Wireless Load Pins are designed to directly replace standard clevis pins in eye-to-eye connections at critical rigging points. Built to withstand high loads, they continuously measure mechanical strain and transmit real-time data via Bluetooth to the Cyclops app or your onboard navigation instruments.
Manufactured from 17‑4 PH stainless steel, these sensors offer exceptional corrosion resistance and IP68-rated waterproofing, while maintaining a compact design that allows for easy installation without modifying the rig. A solution tailored for the demanding environment of a large offshore catamaran like the Alegria 67.
x1 Cyclops Marine Micro Gateway
More discreet than the standard gateway, the micro gateway connects up to 30 Cyclops sensors (Wireless Load Pin, Smarttune, Smartlink, etc.) to your NMEA 2000 network. Once installed, it transmits real-time load data directly to your navigation displays—B&G, Garmin, Sailmon, NKE, or Yacht Devices.
Compact, reliable, and easy to integrate, it frees you from relying solely on the mobile app and enhances onboard data visibility.
Technical Specifications – Package for Fountaine Pajot Alegria 67
Cyclops Marine Micro Gateway
-
Connection: NMEA 2000 network
-
Supported sensors: Up to 30
-
Power supply: NMEA bus
-
Installation: Plug & play
-
Display compatibility: B&G, Garmin, Sailmon, NKE, Yacht Devices
-
Function: Real-time load data visualization on navigation screens
Wireless Load Pin (x2)
-
Type: Wireless load sensor (clevis pin replacement)
-
Application: Eye-to-eye rigging connections
-
Material: 17‑4 PH stainless steel
-
Waterproof rating: IP68 – prolonged immersion
-
Operating temperature: –10 °C to +40 °C
-
Accuracy: ±1% of maximum load
-
Calibration: Factory-calibrated, no onboard adjustment required
-
Data transmission: Bluetooth to Cyclops app or micro gateway
-
Installation: Direct and simple, no modifications needed
-
Recommended use: High-load rigging points on the Alegria 67 catamaran
