Nautitech 44 & 48 Open Standard Pack – Cyclops Marine
6544,80 €
With the Nautitech 44 & 48 Open Standard Pack from Cyclops Marine, monitor your shroud tension in real time. This pack includes two Smarttune 7/8″ sensors, which replace your turnbuckles, along with a Cyclops Marine Gateway for direct connection to your onboard instruments.
A high-performance solution to optimize your rigging based on sailing conditions.
On backorder
Compatible models :
Contents of the Nautitech Standard Pack – Cyclops Marine:
x2 Smarttune 7/8″ Sensors

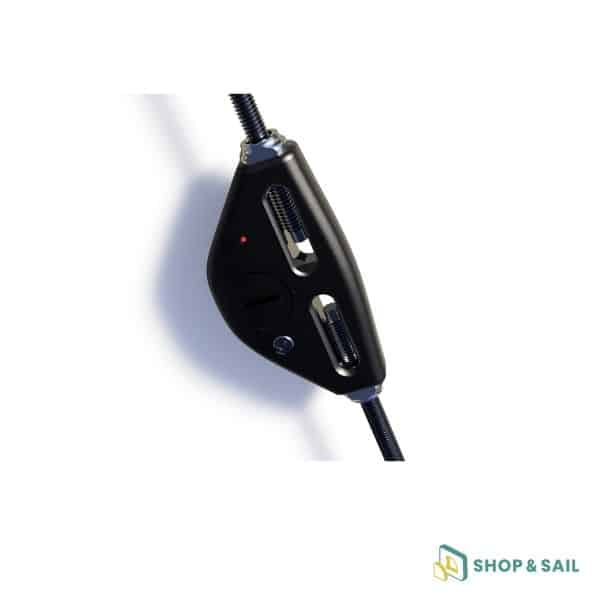

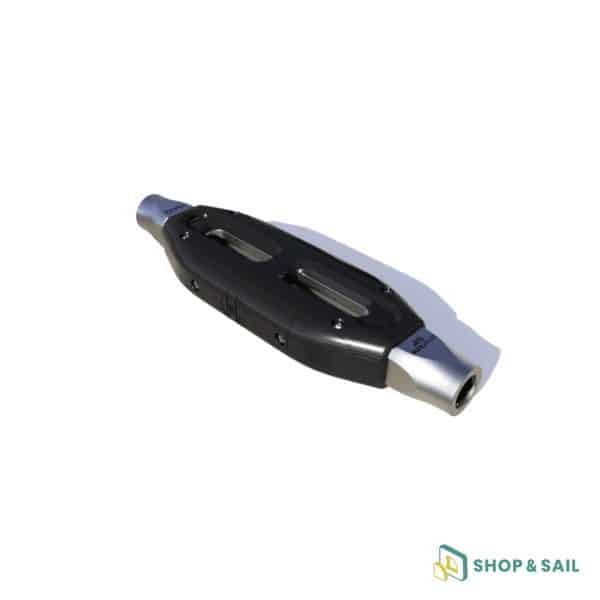

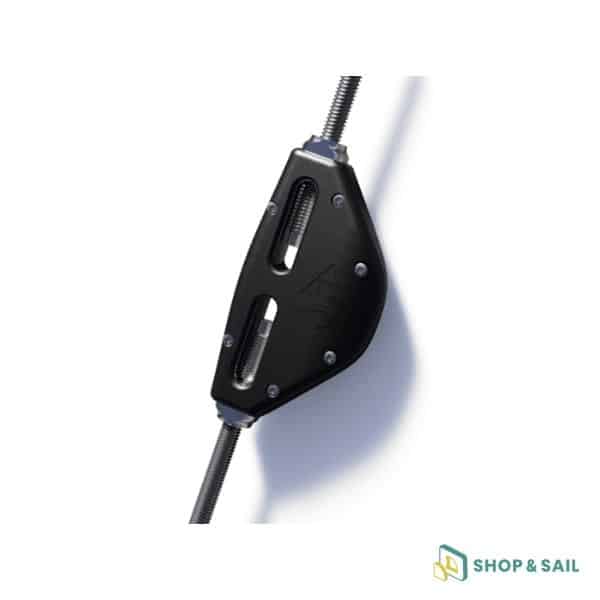

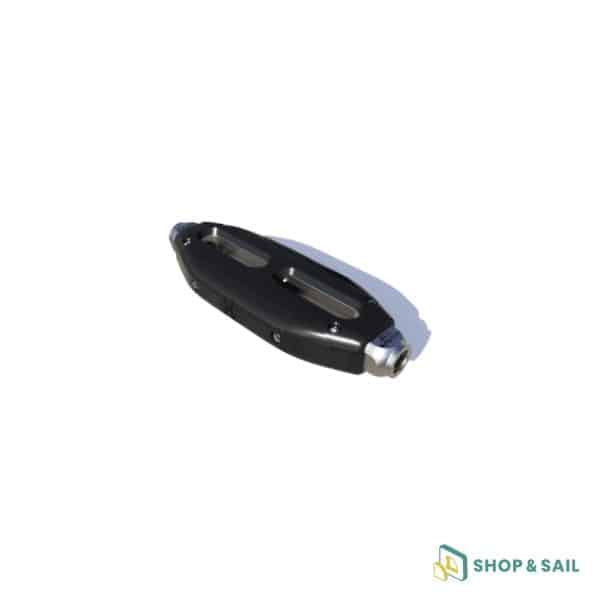

The Smarttune 7/8″ sensor directly replaces your shroud turnbuckle and continuously measures the tension in your standing rigging. Data is transmitted via Bluetooth to the Cyclops app or to your onboard displays through the Cyclops Gateway. Ideal for fine-tuning mast tension while sailing—whether cruising fast or racing offshore.
x1 Cyclops Marine Gateway

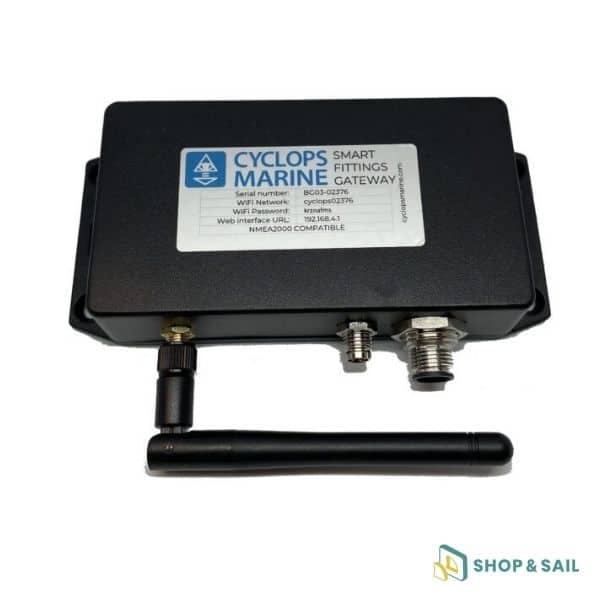

The Cyclops Marine Gateway consolidates data from all sensors and sends it to your onboard network (NKE, NMEA 0183, NMEA 2000). It’s compatible with major display systems like Garmin, B&G, Sailmon, and Yacht Devices. Up to 50 sensors can be connected simultaneously.
For optimal range, install the gateway below deck, within 8 meters of the sensors.
Technical Specifications – Nautitech Standard Pack (Cyclops Marine)
Cyclops Marine Gateway
- Connection: NKE, NMEA 0183, NMEA 2000
-
Supported sensors: up to 50
-
Power supply: via NMEA bus
-
Installation: plug-and-play network integration
-
Display compatibility: Garmin, B&G, Sailmon, Yacht Devices
-
Function: Real-time display and data export
Smarttune 7/8″ Sensor (x2)
-
Type: Wireless sensor for standing rigging tension
-
Calibrated load: 6,000 kg
-
Breaking load: 15,000 kg
-
Transmission: Bluetooth to Cyclops app or gateway
-
Battery life: up to 16 months (2x AAA batteries)
-
Dimensions: 11.8 x 6.3 x 2.1 cm
-
Installation: Direct turnbuckle replacement
-
Use: For large-section shrouds
| Weight | 2 kg |
|---|
