Nautitech 40 Open Cyclops Marine standard pack
6124,80 €
With the Nautitech 40 Open Cyclops Marine standard pack, enjoy precise monitoring of your rig tension.
This powerful combination helps you optimize your tuning, whether cruising or racing.
On backorder
Compatible models :
This pack includes:
The Smarttune 3/4″ sensor directly replaces the turnbuckle on your standing rigging and continuously measures the load on your shrouds. Data is transmitted via Bluetooth to the Cyclops app on your smartphone, or integrated into your onboard instruments via the dedicated gateway.
The Cyclops Marine Gateway centralizes data from your sensors and connects to your onboard network via NKE, NMEA 0183, and NMEA 2000 protocols. Compatible with many systems (NKE, Garmin, B&G, Sailmon, Yacht Devices), it displays real-time rig loads and allows for detailed tuning analysis.
Up to 50 sensors can be connected simultaneously. For optimal installation, the gateway should be mounted below deck within 8 meters of the sensors.
If your vessel has a carbon hull or sensors are positioned beyond 8 meters, we recommend adding a dome antenna for optimal wireless signal quality.
Technical specifications of the Nautitech 40 Open Cyclops Marine standard pack:
Cyclops Marine Gateway:
- Connection: NKE, NMEA0183 and NMEA 2000
- Number of sensors supported: up to 50
- Function: data visualization and export
- Power supply: via NMEA bus
- Installation: plug-and-play network integration
- Display compatibility: NKE, Garmin, B&G, Sailmon, Yacht Devices
- Design: compact, robust, discreet

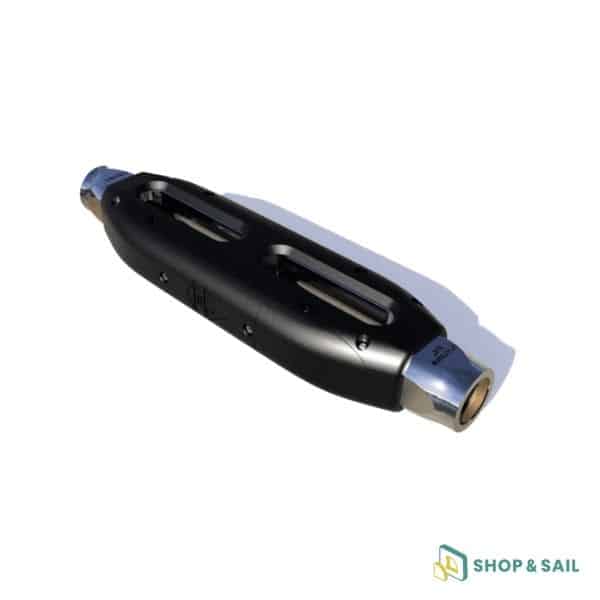

Smarttune 3/4″ Load Sensor:
- Type: wireless load sensor for standing rigging
- Transmission: Bluetooth to smartphone or via gateway to onboard displays
- Calibrated load: 5,000 kg
- Breaking load: 12,500 kg
- Battery life: up to 16 months (2x AAA batteries)
- Dimensions: 11.2 x 5.5 x 1.8 cm
- Installation: direct turnbuckle replacement
- Use: suitable for large or heavily loaded shrouds
| Weight | 2,3 kg |
|---|---|
| Dimensions | 15 × 20 × 8 cm |
