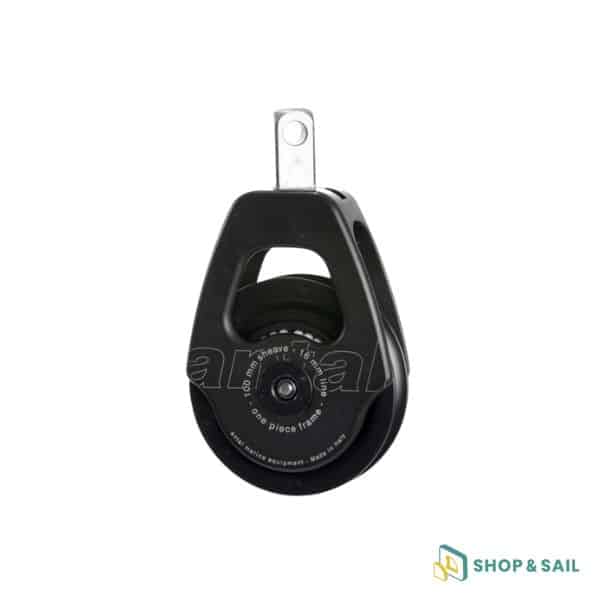

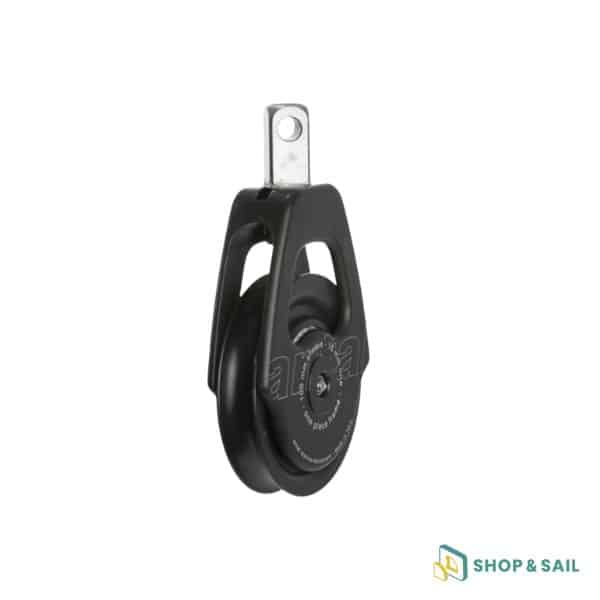

Poulie OPF simple 100 mm Antal
392,40 €
This Antal OPF 100 mm block has 1 sheave with a working load of 3500 kg. It is ideal for accommodating Ø 16 mm rope, with smooth passage thanks to the Derlin ball side bearing and composite fibre radial bearing. Finally, this block is ideal for stand-up mounting on a 4RACE 8 mm or 10 mm traveller.
The single Ø100 mm Antal OPF block is a robust, high-performance solution for applications subject to high on-board stresses, such as mainsail hoists or main halyards. Designed to last, it combines lightness, smooth rotation and excellent mechanical strength.
The 100 mm resin sheave is mounted on a fibre composite radial bearing and Delrin ball bearings on the sides. This combination guarantees excellent performance under load, even in difficult conditions.
This block accepts ropes up to 16 mm in diameter and has a working load of 3500 kg. Thanks to its versatile design, it can be used with a variety of attachments: shackle or snap shackle on swivel, or a special head for stand-up mounting on a 4RACE trolley.
Strong, reliable and compatible with a wide range of fittings, this block is ideal for demanding yachtsmen and racers looking for performance and reliability.
Technical specifications single OPF block Ø100 mm Antal:
- Block type: Single OPF
- Sheave diameter: 100 mm
- Sheave material: Resin
- Bearing type: Radial: Fibre composite / Lateral: Delrin balls
- Working load: 3500 kg
- Compatible line diameter: 16 mm
- Weight: 640 g
- Body material: Black anodised aluminium
- Compatible heads: Shackle on swivel / Snap shackle on swivel / Special stand-up head (8 mm or 10 mm cars)
| Weight | 1 kg |
|---|
