Lewmar Flush 3G T10 dark grey deck hatch
757,00 €
The Lewmar Flush 3G dark grey deck hatch is available in multiple sizes. Depending on the size, it is equipped with either a lever with flush exterior handles or support arms with handles designed for winch handle operation. The dark grey Plexiglas reduces glare while allowing light and ventilation inside the boat. CE-certified and approved for Zone IIA, this hatch ensures a secure installation on the deck, coachroof, cockpit, or transom of your sailboat.
Refer to the table to select the deck hatch that best suits your needs.
Compatible models :
The Lewmar Flush 3G T10 Dark Grey Deck Hatch is designed to provide a sleek and functional design for sailboats and catamarans. Its ultra-flat profile and invisible frame ensure seamless integration into the deck, creating a smooth and elegant surface. The white frame and black outer molding offer a refined finish suitable for all types of vessels.
Made of dark grey tinted Plexiglas, this hatch reduces glare while allowing natural light to enter. It is also equipped with an EPDM seal for perfect waterproofing and molded gutters for efficient rainwater drainage.
Equipment varies by size:
Sizes 10, 20, and 41: Equipped with friction levers and flush exterior handles for a clean, seamless design.
Sizes 30, 44, 54, 60, and 70: Feature one or two support arms and exterior handles with grip, allowing easy opening with a winch handle.
Technical specifications of the Lewmar Flush 3G dark grey deck hatch:
- Material: Dark grey tinted Plexiglas, impact- and UV-resistant.
- Frame: White aluminum for an elegant and durable finish.
- Outer molding: Black, for a discreet aesthetic.
- Design: Flush for seamless deck integration.
- Ultra-flat profile: No protruding elements on the deck surface.
- EPDM seal: Ensures perfect waterproofing against water infiltration.
- Molded gutters: Efficient drainage to prevent water accumulation.
- UV resistance: Maintains the Plexiglas’s transparency and color.
- Versatile installation: Suitable for deck, coachroof, cockpit, and transom mounting.
- Certification: CE-approved, compliant with Zone IIA regulations.
- Maintenance: Easy to clean with non-abrasive products.
Sizes 10, 20, and 41:
Friction levers to hold the hatch open.
Flush exterior handles (no grip) for a clean design.
Sizes 30, 44, 54, 60, and 70:
One or two support arms for secure opening.
Exterior handles with grip for winch handle operation.

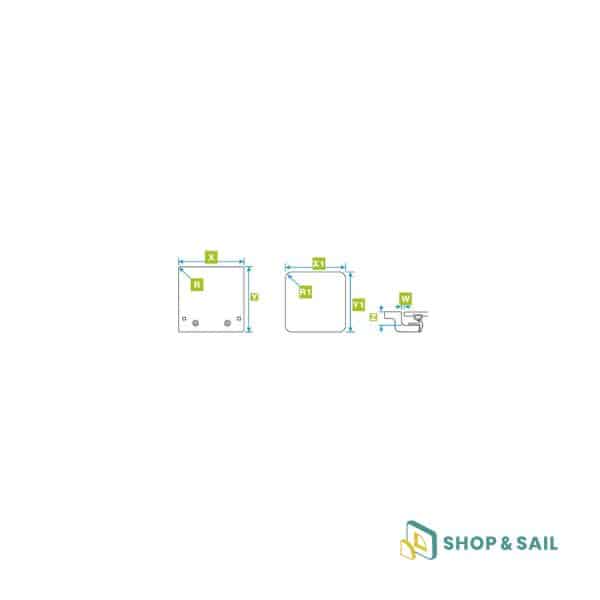

| Model | Manufacturer Reference | W = Hinge Spacing | X = Width | Y = Length | X1 = Cutout Width | Y1 = Cutout Length | Acrylic Glass Thickness |
|---|---|---|---|---|---|---|---|
| T10 | 399104924 | 11 mm | 330 mm | 330 mm | 260 mm | 260 mm | 10 mm |
| T20 | 399204924 | 11 mm | 417 mm | 272 mm | 347 mm | 202 mm | 10 mm |
| T30 | 399304923 | 11 mm | 527 mm | 397 mm | 457 mm | 327 mm | 10 mm |
| T41 | 399414924 | 11 mm | 491 mm | 246 mm | 421 mm | 176 mm | 10 mm |
| T44 | 399444923 | 11 mm | 512 mm | 512 mm | 442 mm | 442 mm | 10 mm |
| T54 | 399544923 | 11 mm | 577 mm | 462 mm | 507 mm | 392 mm | 10 mm |
| T60 | 399604923 | 11 mm | 577 mm | 577 mm | 507 mm | 507 mm | 12 mm |
| T70 | 399704923 | 11 mm | 697 mm | 697 mm | 627 mm | 627 mm | 12 mm |
