XTS Clutch kit – Spinlock
99,60 €
Eclipse flush latch for your pleasure boat. Large, ergonomic handle. 360° rotation and 90° folding handle for convenient on-board use. Visual open/close indicator for easy operation. Straight cam offers two positions for constant control.
The Eclipse MK2 75 mm flush latch is a practical piece of equipment for any sailor aboard catamarans, sailboats or other types of boats. This floor lifter features a flush design and an ergonomic handle for a comfortable grip.
It rotates up to 360° and folds to 90°. The ergonomic nut facilitates adjustment, and the right-hand cam is suitable for closing sliding doors, offering 2 positions.
This nautical equipment is suitable for 5-36 mm partitions, and the visual indicator will easily tell you whether it’s in the open or closed position.

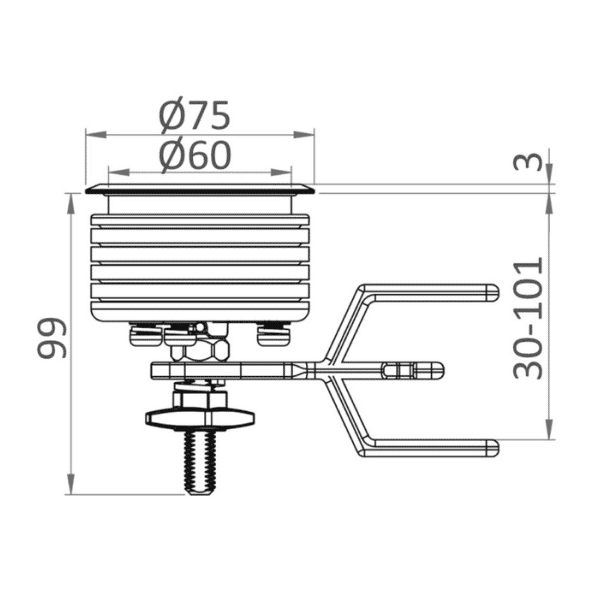

Technical specifications :
- Lock: no
- External Ø: 75 mm
- Hole Ø: 60 mm
- Wall thickness: 5-36 mm
- Stop stroke: 30-101 mm
- Kit: no
- Weight: 0.6 kg
- Flush aesthetics
- Large, ergonomic handle
- 360° rotation
- 90° folding handle
- Visual open/close indicator
- Ergonomic nut for easy emergency exit adjustment
- Straight cam suitable for closing sliding doors, offering 2 positions
- Plastic spacer for customized cut
| Weight | 1 kg |
|---|
