Rutgerson single aluminium foot block
318,56 € – 547,45 €
The Rutgerson single foot block is designed for catamarans and sailboats. Made from aluminium, it offers strength and adaptability, optimising sailing operations.
The Rutgersonsingle aluminium foot block is designed to optimise the management of your sails on board your boat.
Made from anodised aluminium, this block is suitable for use on your sailboat or catamaran.
As well as being lightweight, this block is capable of supporting a load ranging from 2980 to 3900 kg, depending on the model chosen. It is therefore an essential piece of equipment, making it easier to manage your sails.
Technical specifications of the Rutgerson single aluminium foot block :
- Materials: Anodised aluminium

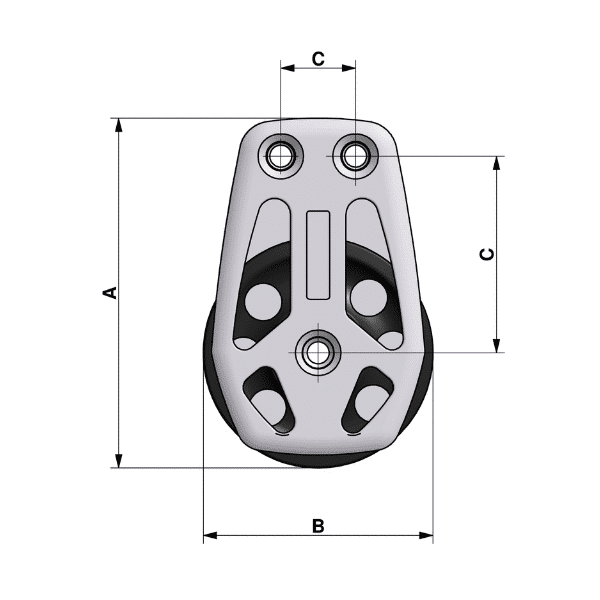

| Modèle | Longueur (mm) A | Diamètre de la poulie (mm) B | Espacement des trous (mm) C | Rayon du bloqueur (mm) D | Côtés et poulies | Charge de travail recommandée (kg) | Charge de rupture (kg) | Diamètre du cordage (mm) | Vis | Poids (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| B309081 | 130 | 80 | 74 x 28 | - | Aluminium | 2980 | 4200 | 10 - 18 | 3xM8 | 550 |
| B309101 | 169 | 100 | 102 x 34 | - | Aluminium | 3900 | 8000 | 12 - 20 | 3xM10 | 807 |
