Rutgerson RAW Block single – ø 3 – 8 mm
156,34 €
The Rutgerson RAW Foot block single composite, designed in composite for catamarans and sailboats, is easy to integrate without taking up space on board.
On backorder
The Rutgerson RAW foot block single composite is designed to improve the management of your sails on board your boat.
This fittings equipment is made from composite, a material that provides effective protection for the block against the aggressions of the marine environment.
Despite its light weight, this block is remarkably robust, able to withstand a load of up to 1500 kg. This makes it an essential piece of equipment, facilitating sail handling and ensuring optimum performance in all situations.
Technical specifications of the Rutgerson RAW Foot block single composite :
- Materials: Composite
- Rope diameter: 10 – 18 mm
- Length: L 13 x 8 cm
- Weight: 0,267 kg
- Manufacturer reference: B300081B

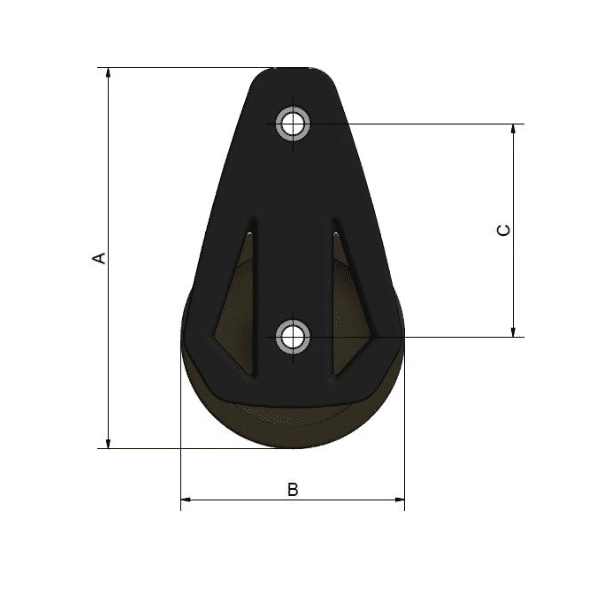

| Modèle | Longueur (mm) A | Diamètre de la poulie (mm) B | Espacement des trous (mm) C | Rayon du bloqueur (mm) D | Côtés et poulies | Charge de travail recommandée (kg) | Charge de rupture (kg) | Diamètre du cordage (mm) | Vis | Poids (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| B300081B | 130 | 80 | 74 x 19 | - | Composite | 1500 | 3000 | 10 - 18 | 2xM6 1xM8 | 267 |
| Weight | 0,3 kg |
|---|---|
| Dimensions | 13 × 8 cm |
