Rutgerson RAW cheek block with horizontal plate
40,74 € – 81,71 €
The Rutgerson RAW cheek block with horizontal plate, is designed for your catamaran or sailing boat. It can be installed on any flat surface, and can support a working load of 450 to 800 kg, depending on the model.
Compatible models :
The Rutgerson RAW cheek block with horizontal plate is a piece of deck fittings for your sailboat or catamaran. It features a horizontal support that will adapt to any flat surface.
As well as being lightweight, this block offers ideal strength for sailing, capable of supporting a working load of between 450 and 800 kg.
Technical specifications of the Rutgerson RAW cheek block with horizontal plate :
- Materials: Composite

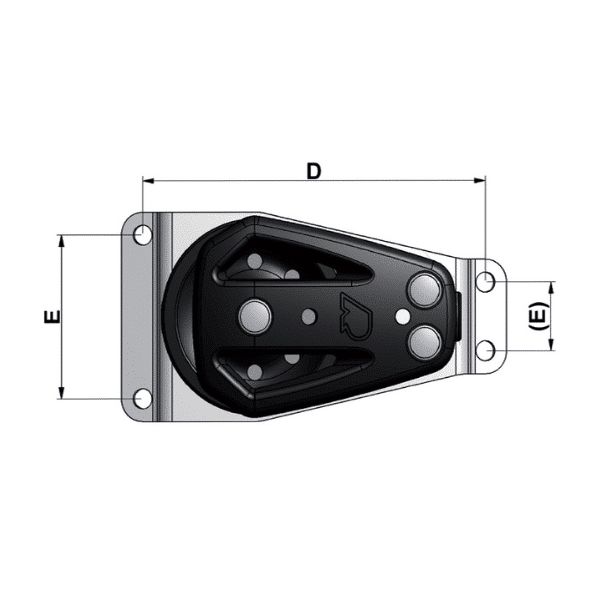

| Modèle | Diamètre de la poulie (mm) | Longueur (mm) D | Largeur (mm) E | Charge de travail recommandée (kg) | Charge de rupture (kg) | Diamètre du cordage (mm) | Poids (g) |
|---|---|---|---|---|---|---|---|
| B300345B | 35 | 74 | 20/37 | 450 | 850 | 3 - 8 | 70 |
| B300545B | 50 | 94 | 40/16 | 700 | 1250 | 4 - 12 | 133 |
| B300645B | 60 | 110 | 50/21 | 800 | 1600 | 6 - 14 | 239 |
