Rutgerson RAW Block Single with Snap Shackle
41,04 € – 146,48 €
The Rutgerson RAW Block Single with Snap Shackle can be adapted to any type of installation you wish to make on your catamaran. The composite design makes it highly resistant to humidity and UV rays, as does the carabiner, which ensures it is firmly attached.
The Rutgerson RAW Block Single with Snap Shackle is ideal for installing your ropes on your sailboat. It is an essential piece of hardware for comfortable sailing at sea.
Made from composite, this block will withstand the rigours of the marine environment. It is available in several models, to suit your needs.
As well as being lightweight, the single block with snap shackle is robust enough to carry a working load of between 300 and 1500 kg.
Technical specifications of the Rutgerson RAW Block Single with Snap Shackle :
:
- Materials: Composite

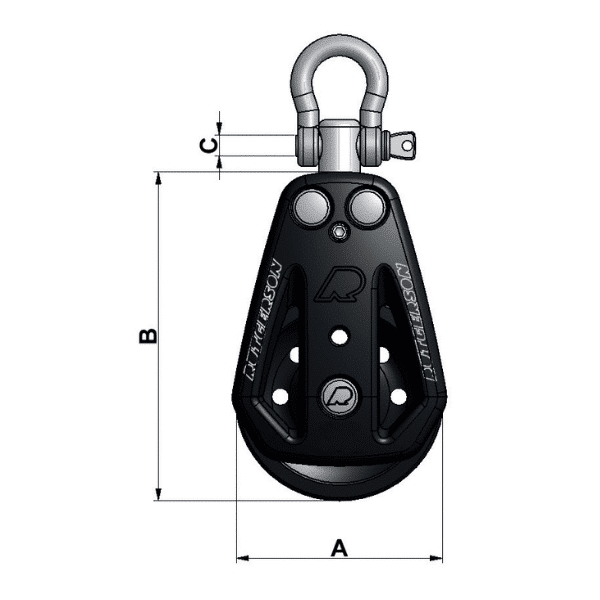

| Modèle | Diamètre poulie (mm) A | Longueur (mm) B | Manille (mm) C | Charge de travail recommandée (kg) | Charge de rupture (kg) | Diamètre du cordage (mm) | Poids (g) |
|---|---|---|---|---|---|---|---|
| B300301BS | 35 | 55 | - | 300 | 550 | 3 - 8 | 97 |
| B300501BS | 50 | 80 | - | 500 | 900 | 4 - 12 | 121 |
| B300601BS | 60 | 94 | - | 750 | 1700 | 6 - 14 | 210 |
| B300801BS | 80 | 130 | - | 1500 | 270 | 10 - 16 | 607 |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Diameter | ø 1 mm, ø 2 mm, ø 3 mm, ø 3 – 7 mm, ø 3 – 8 mm, ø 4 mm, ø 4 – 5 mm, ø 4 – 12 mm, ø 5 mm, ø 6 mm, ø 6 – 7 mm, ø 6 – 8 mm, ø 6 – 10 mm, ø 6 – 14 mm, ø 8 mm, ø 8 – 10 mm, ø 8 – 12 mm, ø 8 – 14 mm, ø 10 mm, ø 10 – 13 mm, ø 10 – 16 mm, ø 10 – 18 mm, ø 11 mm, ø 12 mm, ø 12 – 16 mm, ø 12 – 20 mm, ø 14 mm, ø 14 – 20 mm, ø 16 mm, ø 18 – 26 mm, ø 20 mm, ø 22 – 34 mm, ø 24 mm, ø 35 mm, ø 38 mm, ø 49 mm, ø 50 mm, ø 54 mm, ø 60 mm, ø 80 mm, ø 100 mm |
