Rutgerson RAW Block single – ø 3 – 8 mm
554,81 €
The Rutgerson double aluminium foot block is designed for catamarans and sailing boats. Made from aluminium, this block is a reliable solution for smooth, safe sailing. Working load up to 4200 kg.
The Rutgerson Double aluminium foot block is a piece of fittings that improves the management of your sails on board your boat.
This block is made from anodised aluminium, making it resistant to the harsh marine environment.
Lightweight, this block is capable of supporting a load of up to 4200 kg, ideal for making it easier to manage your sails on board.
Technical specifications of the Rutgerson Double aluminium foot block :
- Materials: Anodised aluminium
- Dimensions: L 13 x W 8 cm
- Weight: 0,871 kg
- Manufacturer reference: B309082
*The upper block has half the recommended working load and half the breaking load.

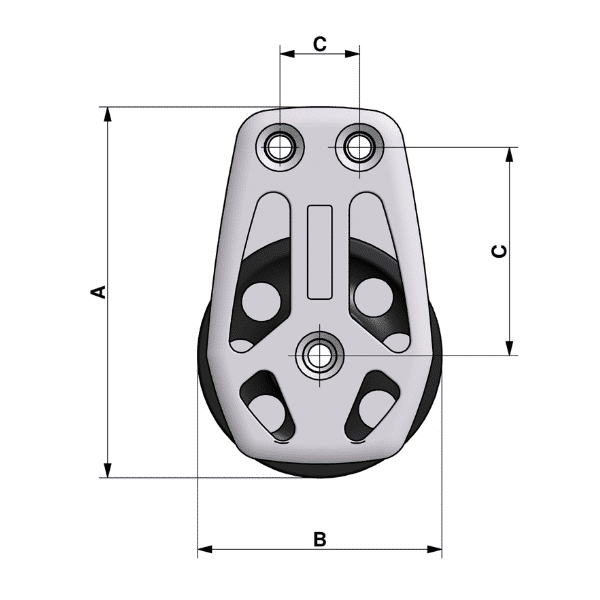

| Modèle | Longueur (mm) A | Diamètre de la poulie (mm) B | Espacement des trous (mm) C | Rayon du bloqueur (mm) D | Côtés et poulies | Charge de travail recommandée (kg) | Charge de rupture (kg) | Diamètre du cordage (mm) | Vis | Poids (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| B309082 | 130 | 80 | 74 x 28 | - | Aluminium | 2980* | 4299* | 10 - 18 | 3xM8 | 871 |
| Weight | 1 kg |
|---|---|
| Dimensions | 13 × 8 cm |
