57mm round padeye Harken
168,60 €
Harken’s small round 57 mm padeye in 17-4 PH stainless steel is designed for maximum strength and versatile use on sailboats. Ideal for securing blocks, staysail chainplates and other nautical uses, it provides proven strength with a working load of up to 2270 kg. Compatible with sailboat installations such as the Nautitech 482, this padeye is a robust and reliable solution for demanding sailing. The workload differs depending on the angle of use. Fixed with 6 FH mm screws.
Harken’s small round 57 mm padeye is a must-have for sailors looking for a reliable and robust fastener. Made from 17-4 PH stainless steel, it offers exceptional resistance to corrosion and heavy loads, even in extreme marine conditions.
This padeye is particularly well-suited to the installation of blocks, chainplates and other marine applications requiring a secure fastening. Thanks to its optimised design, it can be installed on various types of yacht, including models such as the Nautitech 482.
When installing, it is crucial to orient the ring in the direction of pull to ensure maximum strength. This padeye supports different loads depending on the angle of use (see product image): Maximum working load 1 = 2270 kg with a breaking load of 4535 kg. Maximum working load 2 = 2040 kg with a breaking load of 4080 kg. Maximum working load 3 = 1950 kg with a breaking load of 3900 kg.
Its compact design (57 mm diameter) and optimised weight (118 g) make it an unobtrusive yet sturdy piece of equipment. Easy to install thanks to M6 FH fixing screws.
Whether for rigging, block attachment or sail anchoring, this Harken padeye offers a secure and durable solution for demanding sailors.
Technical specifications padeye small round 57 mm Harken :
- Material : 17-4 PH stainless steel, high corrosion resistance
- Applications : Attachment of blocks, chainplates, rigging, anchor points and much more.
- Maximum working load : Position 1: 2270 kg; Position 2: 2040 kg; Position 3: 1950 kg
- Breaking load : Position 1: 4535 kg; Position 2: 4080 kg; Position 3: 3900 kg

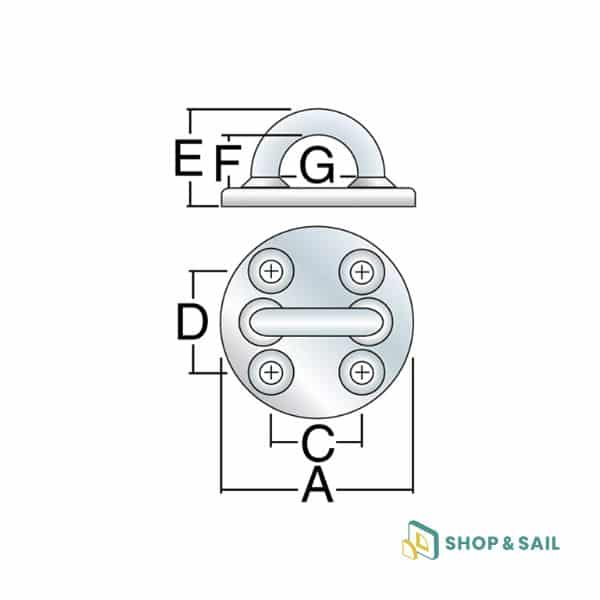

- Dimensions :
- Diameter (A) : 57 mm
- Height (C) : 27 mm
- Width (D) : 30 mm
- Length (E) : 30 mm
- Inside diameter of ring (F) : 16 mm
- Hole spacing (G) : 24 mm
- Weight : 118 g
- Fixing screws : M6 FH
- Compatibility : Can be installed on a Nautitech 482
| Weight | 0,2 kg |
|---|
