16mm bolt-down fairlead Harken

Make sure your sheets run smoothly and safely with the Harken Ø 16 mm screw-fastening line, an essential accessory for rigging your yacht. Designed to slightly deflect the sheets while reducing rope wear, this line is perfectly suited to demanding nautical equipment.

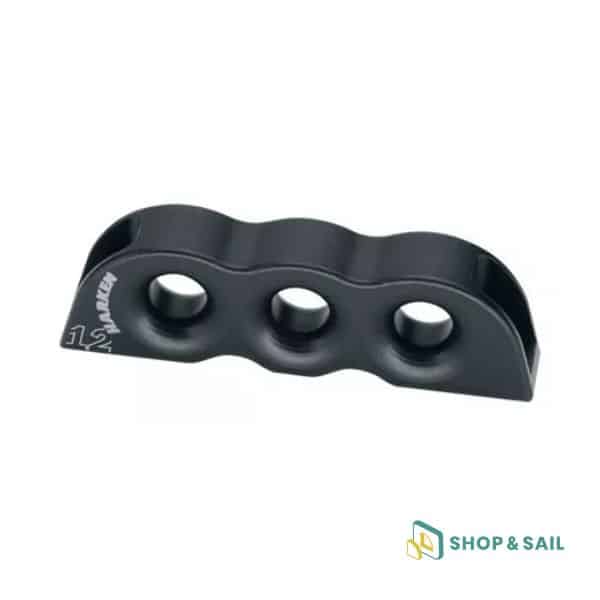

Made from PTFE-treated, hard-anodised 6061-T6 aluminium, this line spool guarantees optimum resistance to corrosion and aggressive marine environments. Its meticulous design, with a smooth surface and rounded edges, preserves line life by limiting excessive friction. Available in three configurations (single, double or triple), it can be adapted to different installation requirements on board your yacht.

Thanks to its 16 mm central hole, this spinner can accommodate sheets up to 14 mm in diameter. All this while supporting a maximum working load of 1816 kg and an impressive breaking load of 3632 kg. Its 8 mm hexagonal screw fixing system makes for fast, efficient installation, particularly for flush mounting. This ensures stability and optimum support in complete safety.

Whether you want to improve the passage of your sheets or reinforce your nautical equipment, this line is a reliable, high-performance choice for yachtsmen concerned about the quality and durability of their equipment on board.

Harken Ø 16 mm screw-fastening wire rope technical specifications :

• Material: PTFE-treated, hard-anodised 6061-T6 aluminium
• Height: 31.8 mm
• Width: 22 mm
• Length: 60 mm; 91 mm; 121 mm
• Centre hole diameter: 16 mm
• Max. rope diameter: 14 mm
• Fixing type: 8 mm hex head screw
• Weight: 0.47 kg; 0.80 kg; 0.112 kg
• Maximum working load: 1816 kg
• Breaking load: 3632 kg
• Availability: Single, double or triple
