Support Plana pour 2 modules Vimar
7,80 €
The Plana standard American and Saudi 127 V socket from Vimar is a 2P + T compliant socket designed for installation on your catamaran. Made from thermoplastic, it fits into your boat’s 110-120 V electrical system. Its maximum input voltage of 127 V delivers a maximum current of 15 A.
Vimar’s standard American and Saudi Plana socket, designed for catamarans, optimises the electrical distribution on board your boat with an ideal 110-120 V fit.
Its thermoplastic construction makes it easy to install, ensuring a secure connection.
This socket can be found installed on sailing yachts and catamarans (particularly Fountaine Pajot).
With this electrical equipment, you’re guaranteed greater comfort when you’re out at sea, with a high-performance electrical network to power all your multimedia and household appliances.
Technical specifications of the Plana standard American and Saudi 127 V Vimar socket outlet :
- Materials: Thermoplastic
- Colour: White
- Finish: Gloss

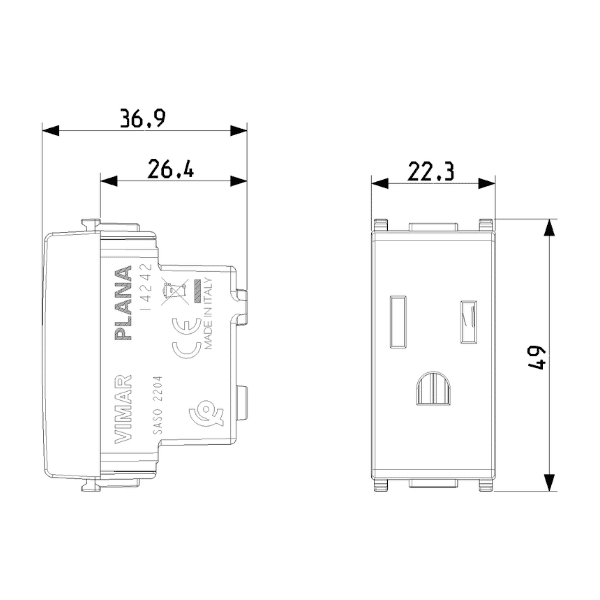

- Length: W 2.2 x D 3.6 x H 4.9 cm
- Installation: Recessed
- Max. rated voltage: 127 V
- Rated current: 15 A
- Frequency: 50.00 – 60.00 HZ
- Protection class: IP20
- Socket type: Classic American and Saudi
- Manufacturer reference: 14242
| Weight | 0,07 kg |
|---|---|
| Dimensions | 2,2 × 3,6 × 4,9 cm |
