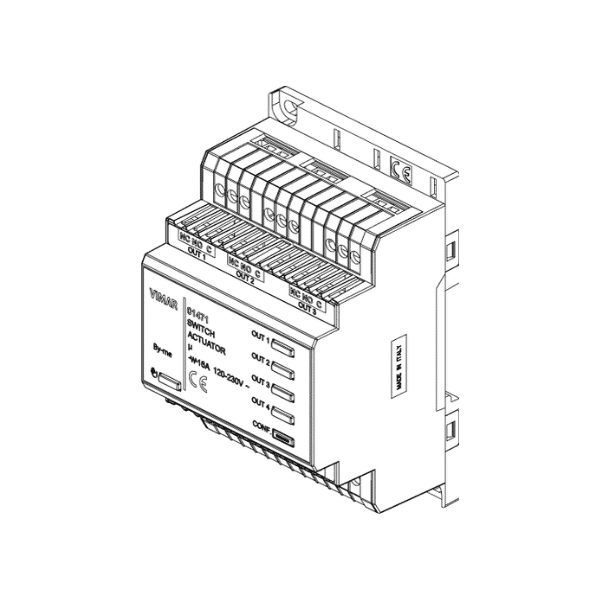

Actuator 4 outputs with changeover relay 16 A 120 – 230 V Vimar
156,00 €
The Vimar actuator with 4 changeover relay outputs is ideal for installation on your pleasure boat. It is compatible with 120 – 230 V mains, for a nominal current of 16 A. Take control of lights, blinds, fan coils… Length 17.5 mm (4 modules).
On backorder
Compatible models :
The Vimar actuator is a versatile piece of equipment designed for By-me home automation systems, offering advanced functionality for controlling various electrical devices on your catamaran or sailboat. With its 4 changeover relay outputs, it enables efficient management of lights, blinds with slat orientation, and fan convectors. Can be installed on a 120 – 230 V mains supply for 16 A consumption.
Installation is made easy thanks to the standard DIN guide, with adapted dimensions (17.5 mm, i.e. 4 modules) for optimal positioning.
Technical specifications of the 16 A 120 – 230 V Vimar 4-output changeover relay actuator :
- Outputs: 4 changeover relay outputs
- Voltage: 120-230 V
- Current: 16 A
- Programmable functions: light control, blind control with slat orientation, fan coil control
- Equipped with push-button for local control
- Compatible with By-me home automation system
- Designed for DIN rail installation

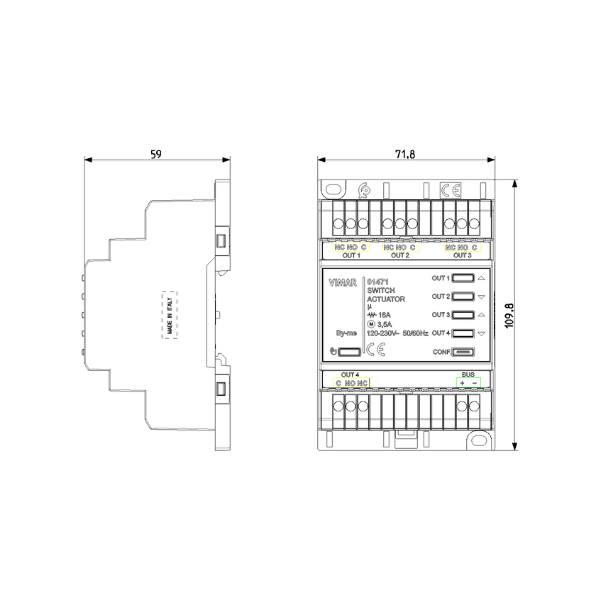

- Dimensions: 17.5 mm each (4 modules)
- Manufacturer’s reference: 01471
| Weight | 0,3 kg |
|---|
